ISO9001:2008 Certified Horizontal Nano Attritor Pearl Mill ZM-K Model for Wet Grinding Particle Size Reduction

distributor zm5k conical bead mill

zm5k distributor conical bead mill

bead distributor zm5k conical mill

Request A Quote

Product Details

Model NO.:

ZM-K

Seal Type:

Mechanical Seal

Warranty:

12 Months

Separator:

Gap Separator

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China.

HS Code:

8479820090

Supply Ability:

60 Set/Sets Per Month

Type:

Disc Type, Turbo Type, Pin Type

Application:

Paints, Inks, Pigments, Agrochemical Etc.

Voltage:

380V, 220V, 415V

Power(W):

750-315000

Function:

Wet Grinding For Particle Size

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Customization:

Available | Customized Request

Highlight:

distributor zm5k conical bead mill

zm5k distributor conical bead mill

bead distributor zm5k conical mill

Payment & Shipping Terms

200kg Capacity Bead Mill Machine with Zirconia Beads and Gap Separator for Smooth Grinding Performance

Get Best Price

Water Base Suitable Horizontal Bead Mill Machine for Stable Grinding and Dispersion Process at 50Hz Frequency

Get Best Price

50Hz Horizontal Bead Mill Machine with Zirconia Beads and Gap Separator for Chemical and Pharmaceutical Applications

Get Best Price

55kw Motor 50Hz Frequency Horizontal Bead Mill Machine with Zirconia Beads for Efficient Material Processing

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

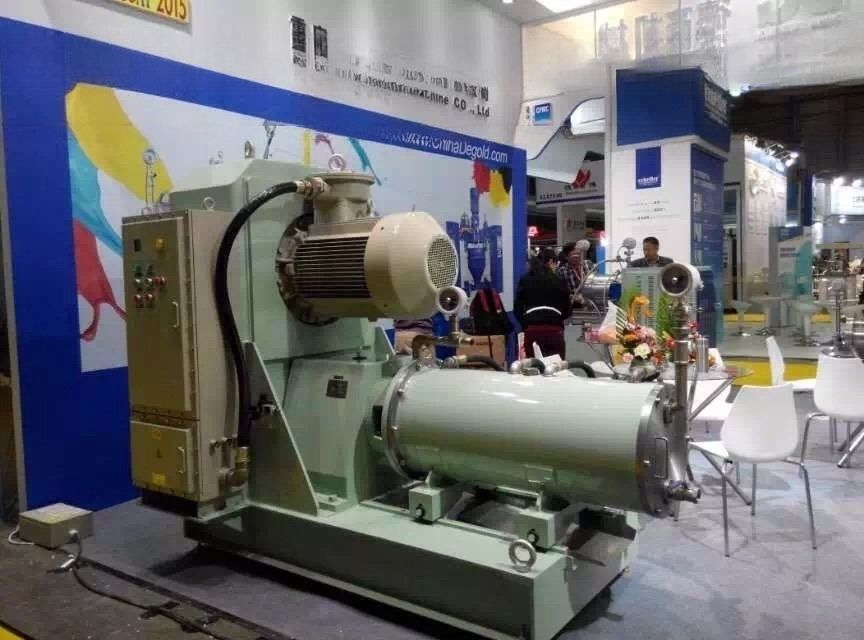

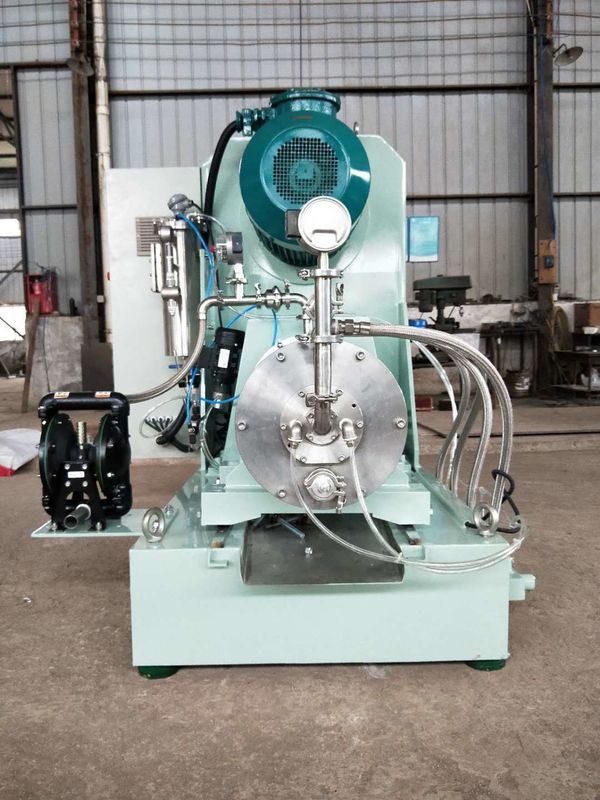

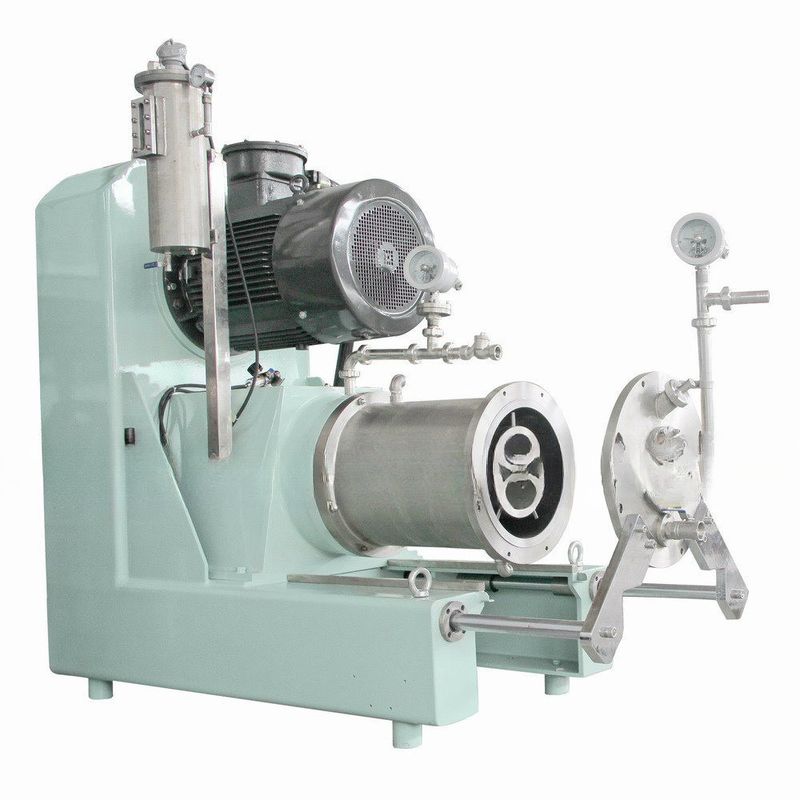

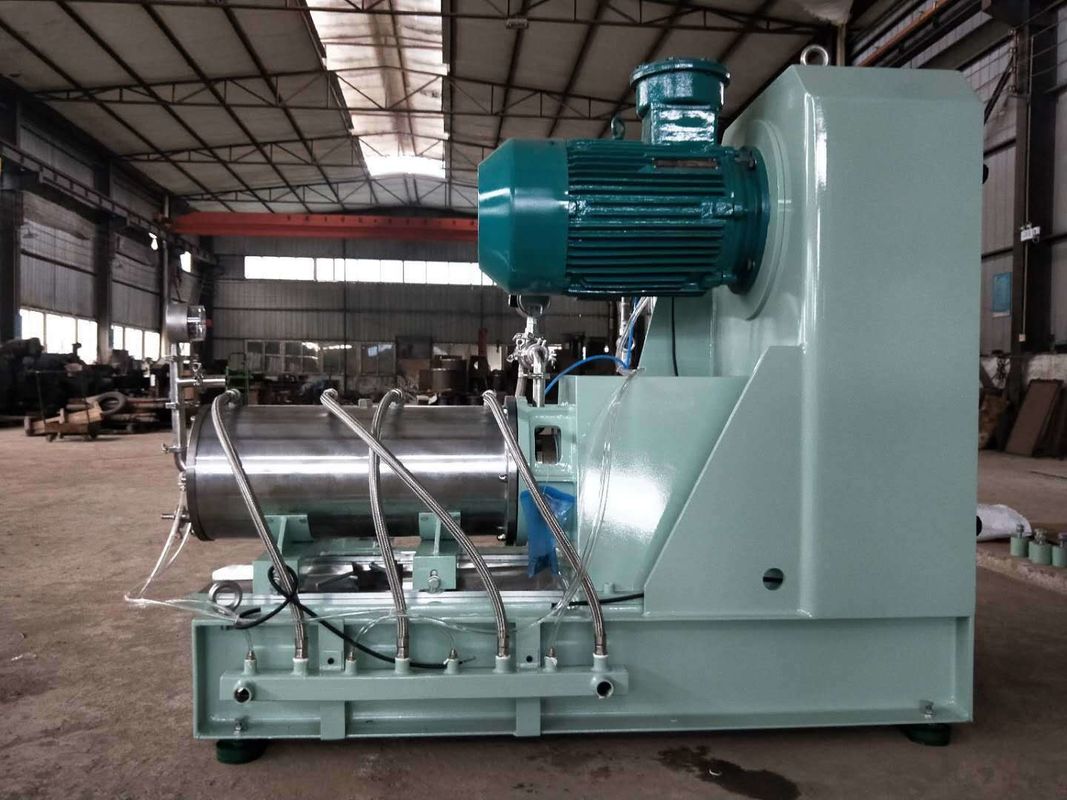

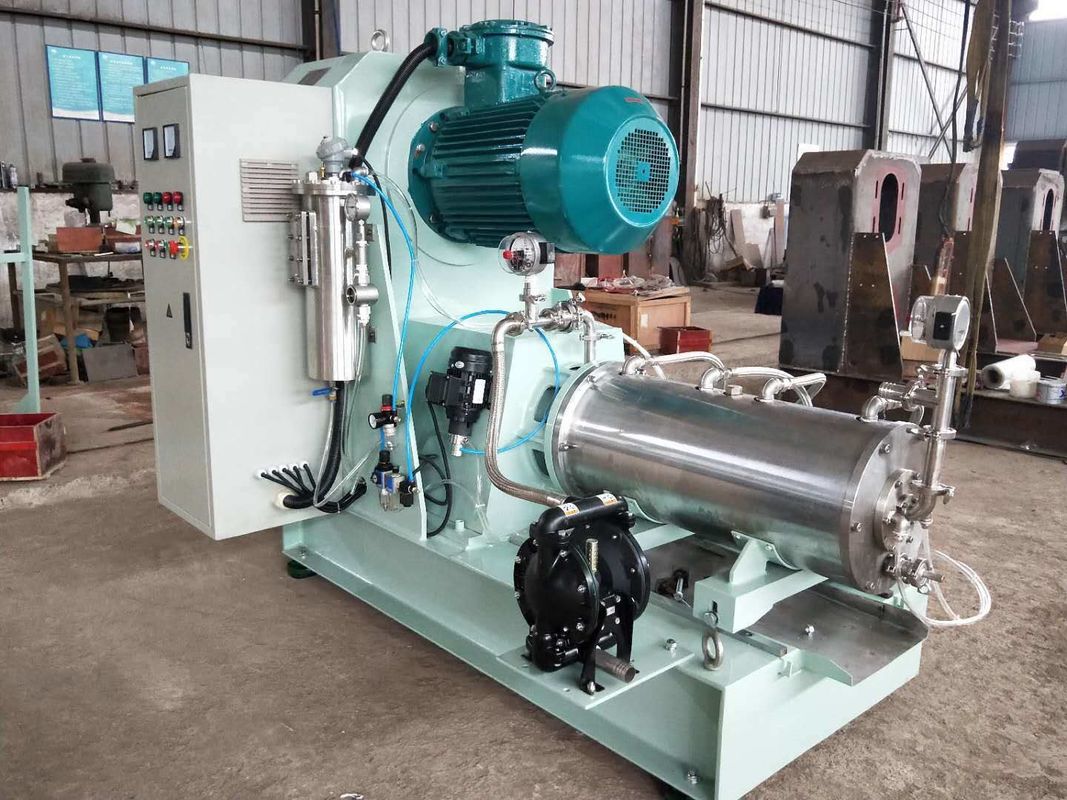

ISO9001 2008 Certified Horizontal Nano Attritor Pearl Mill for Inkjet ZM-K Model

DEGOLD bead mills and sand mills are engineered for continuous wet grinding of solids in liquid materials to achieve precise particle size reduction. Our comprehensive product line includes five specialized series:

Bead Mill Series Overview

Series	Type Description
Series ZM	Grinding discs type bead mills
Series ZM-X	High-performance horizontal bead mills
Series ZM-E	Enhanced efficiency bead mills

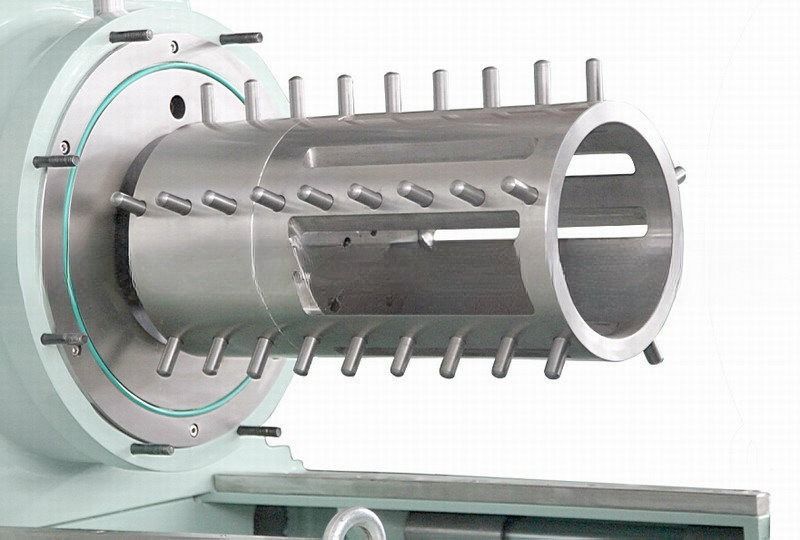

Series ZM-K	Pin type bead mills
Series ZM-T	Turbo type bead mills

Operating Principle

The rotary grinding shaft drives all grinding mediums within the grinding chamber, transferring mechanical power to the materials for effective particle size reduction. An integrated gap separator ensures precise separation of finished products from grinding mediums, making these mills suitable for formulations across various viscosity ranges.

Multiple material options are available for internal components, including SS304, hard alloy, mold steel, polyurethane, tungsten carbide, and ceramic materials to meet specific application requirements.

Industrial Applications

Industry	Applications
Agrochemicals	Pesticide, Herbicide, Fertilizer, SC formulations
Ceramic Industry	Ceramic inks, Ceramic pigments
Printing Inks	Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes	Pigment dispersions, Titanium dioxide
Paint and Coating	Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals	Calcium carbonate, Pharmaceuticals, Cosmetics

Technical Specifications

ZM Series Technical Data

Model	ZM0.3	ZM1.4	ZM5	ZM15	ZM20	ZM30	ZM50
Effective grinding chamber volume (L)	0.3	1.4	5	15	20	30	50
Main motor power (kW)	0.75	2.2	7.5	15	18.5	22	30
Grinding shaft rotary speed (r/min)	0-1500	0-2800	1650	1200	1200	1120	900
Adjustable materials flow (L/min)		0-1	0-2	0-2	0-10	0-10	0-60
Max. cooling water consumption (t/h)		0.5	1	1	2	2	2.5
Estimated productivity (kg/h)		2-20	12-120	30-300	40-400	50-600	100-1000
Dimensions L×W×H (mm)	640×410×485	650×570×885	1250×900×1250	1560×1050×1550	1600×1050×1550	1860×1100×1550	2100×1150×1650
Net weight (kg)	50	500	700	800	980	1100	1300
