Degold ZM60-K 60 Liters Horizontal Pin Type Bead Mill with Sieve Separator for Wet Grinding

zm5k conical wholesalers bead mill

wholesalers conical bead mill zm5k

conical bead wholesalers zm5k mill

Request A Quote

Product Details

Model NO.:

ZM60-K

Seal Type:

Double Mechanical Seal

Warranty:

12 Months

Separator:

Sieve Separator

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China.

HS Code:

8479820090

Supply Ability:

60 Set/Sets Per Month

Type:

Pin Type

Application:

Paints, Inks, Pigments, Agrochemical Etc.

Voltage:

380V, 220V, 415V

Power(W):

75000/90000

Function:

Wet Grinding For Particle Size

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Customization:

Available | Customized Request

Highlight:

zm5k conical wholesalers bead mill

wholesalers conical bead mill zm5k

conical bead wholesalers zm5k mill

Payment & Shipping Terms

200kg Capacity Bead Mill Machine with Zirconia Beads and Gap Separator for Smooth Grinding Performance

Get Best Price

Water Base Suitable Horizontal Bead Mill Machine for Stable Grinding and Dispersion Process at 50Hz Frequency

Get Best Price

50Hz Horizontal Bead Mill Machine with Zirconia Beads and Gap Separator for Chemical and Pharmaceutical Applications

Get Best Price

55kw Motor 50Hz Frequency Horizontal Bead Mill Machine with Zirconia Beads for Efficient Material Processing

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

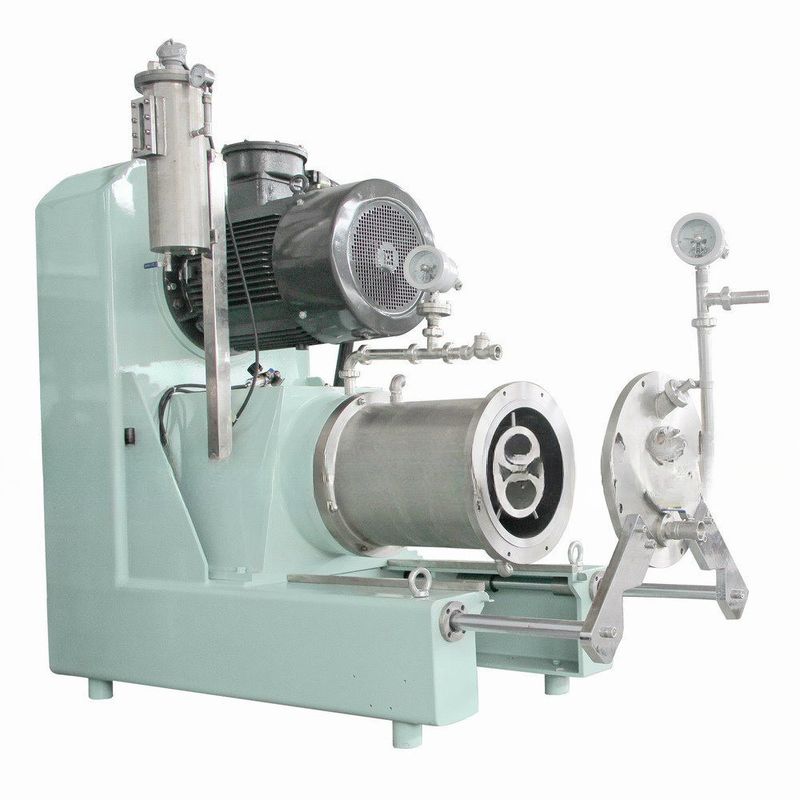

Degold ZM 60 Liters Horizontal Pin Type Bead Mill with Sieve Separator

DEGOLD bead mills and sand mills are engineered for continuous wet grinding of solids in liquid materials to achieve precise particle size reduction. We manufacture five distinct series to meet various industrial requirements.

Available Bead Mill Series

Series	Type
Series ZM	Horizontal grinding discs type bead mills
Series ZM-X	Horizontal bead mills
Series ZM-E	Horizontal bead mills
Series ZM-K	Horizontal pin type bead mills
Series ZM-T	Horizontal turbo type bead mills

Operating Principle

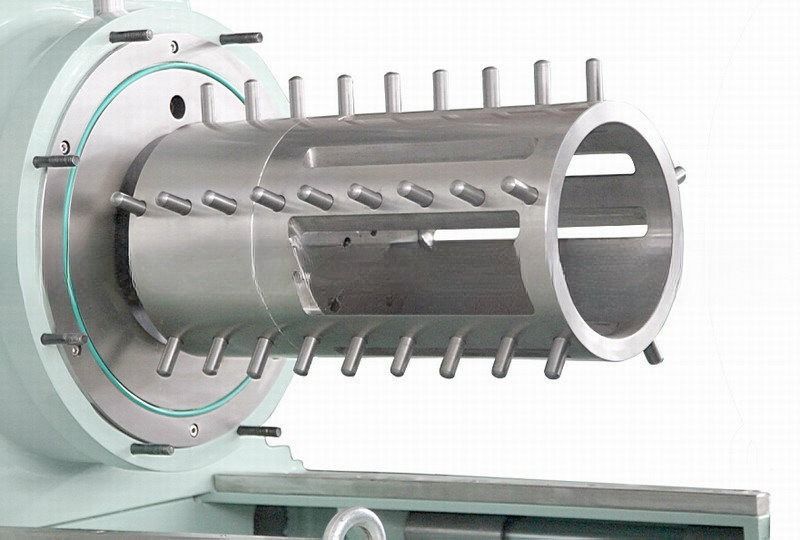

The rotary grinding shaft drives all grinding mediums within the grinding chamber, transferring energy to the materials for effective particle size reduction. A gap separator within the horizontal bead mills efficiently separates finished products from grinding mediums, making these mills suitable for formulations with varying viscosities.

Multiple material options are available for internal components, including SS304, hard alloy, mold steel, polyurethane, tungsten carbide, and ceramic materials.

Industrial Applications

Industry	Applications
Agrochemicals	Pesticide, Herbicide, Fertilizer, SC formulations
Ceramic Industry	Ceramic inks, Ceramic pigments
Printing Inks	Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes	Pigment dispersions, Titanium dioxide
Paint and Coating	Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals	Calcium carbonate, Pharmaceuticals, Cosmetics

Technical Specifications

ZM Series Horizontal Bead Mills

Model	ZM0.3	ZM1.4	ZM5	ZM15	ZM20	ZM30	ZM50
Effective grinding chamber volume (L)	0.3	1.4	5	15	20	30	50
Main motor power (kW)	0.75	2.2	7.5	15	18.5	22	30
Grinding shaft rotary speed (r/min)	0-1500	0-2800	1650	1200	1200	1120	900

ZM-X Series Horizontal Bead Mills

Model	ZM5-X	ZM15-X	ZM20-X	ZM30-X	ZM50-X	ZM100-X	ZM200-X
Effective grinding chamber volume (L)	5	15	20	30	50	100	200
Main motor power (kW)	11	18.5	22	30	37/45	45/55	55/75

Note: Technical specifications may vary with customized configurations.

Production Line

Professional Services

We provide comprehensive technical support by dispatching qualified technicians to customer facilities for professional installation and operator training services.

Packaging & Shipping

Equipment is securely packaged in fumigation wooden boxes. Grinding mediums are typically shipped together with the bead mill units.

Industry Exhibitions

ZM-K Series Horizontal Bead Mills in Operation
