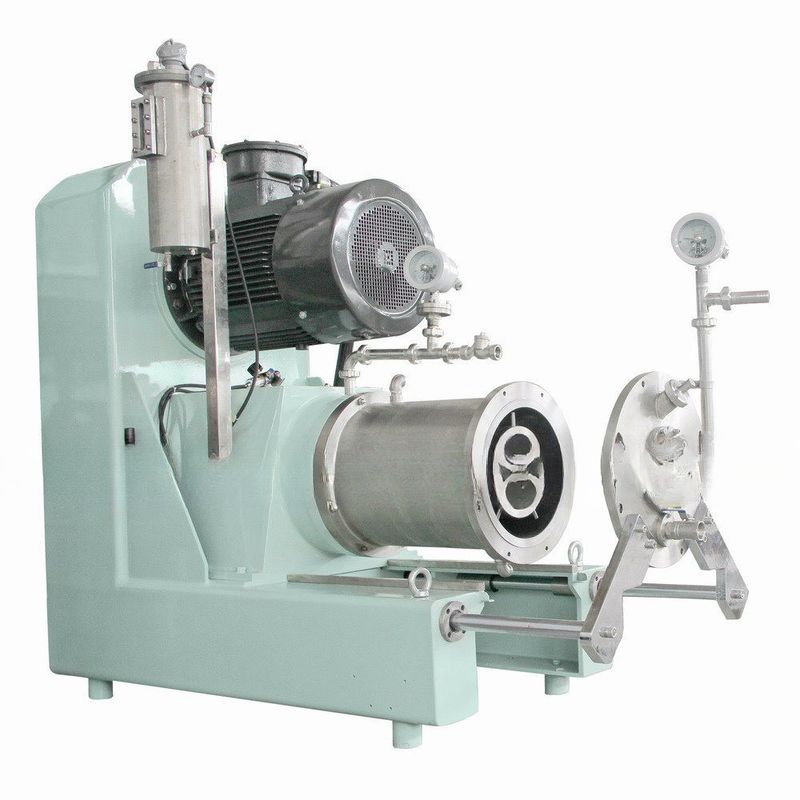

Mechanical Seal Degold Zm-K Pin Type Gravure Ink Mill for Agrochemical Processing
DEGOLD bead mills and sand mills are engineered for continuous wet grinding of solids in liquid materials to achieve precise particle size reduction. Our comprehensive product line includes five specialized series:
DEGOLD Bead Mill Series
| Series |
Type |
| Series ZM |
Horizontal bead mills with grinding discs |
| Series ZM-X |
High-performance horizontal bead mills |
| Series ZM-E |
Enhanced horizontal bead mills |
| Series ZM-K |
Pin type bead mills |
| Series ZM-T |
Turbo type bead mills |
Operating Principle
The rotary grinding shaft drives all grinding mediums within the grinding chamber, transferring mechanical energy to the materials for effective particle size reduction. An integrated gap separator ensures precise separation of finished products from grinding mediums, making these mills suitable for formulations with varying viscosities.
Material Options
Our horizontal bead mills offer versatile material compatibility including SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic, and other specialized materials.
Industrial Applications
Agrochemicals
Pesticide, Herbicide, Fertilizer, SC formulations
Ceramic Industry
Ceramic inks, Ceramic pigments
Printing Inks
Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes
Pigment dispersion, Titanium dioxide
Paint and Coating
Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals & Specialties
Calcium carbonate, Pharmaceuticals, Cosmetics
Technical Specifications
ZM Series Horizontal Bead Mills
| Model |
ZM0.3 |
ZM1.4 |
ZM5 |
ZM15 |
ZM20 |
ZM30 |
ZM50 |
| Effective grinding chamber volume (L) |
0.3 |
1.4 |
5 |
15 |
20 |
30 |
50 |
| Main motor power (kW) |
0.75 |
2.2 |
7.5 |
15 |
18.5 |
22 |
30 |
| Grinding shaft rotary speed (r/min) |
0-1500 |
0-2800 |
1650 |
1200 |
1200 |
1120 |
900 |
| Estimated productivity (kg/h) |
|
2-20 |
12-120 |
30-300 |
40-400 |
50-600 |
100-1000 |
ZM-X Series High-Performance Bead Mills
| Model |
ZM5-X |
ZM15-X |
ZM20-X |
ZM30-X |
ZM50-X |
ZM100-X |
ZM200-X |
| Effective grinding chamber volume (L) |
5 |
15 |
20 |
30 |
50 |
100 |
200 |
| Main motor power (kW) |
11 |
18.5 |
22 |
30 |
37/45 |
45/55 |
55/75 |
| Estimated productivity (kg/h) |
15-150 |
40-400 |
50-500 |
60-800 |
150-1500 |
150-1500 |
200-2000 |
ZM-K Series Pin Type Bead Mills
| Model |
ZM10-K |
ZM25-K |
ZM60-K |
ZM150-K |
| Grinding chamber volume (L) |
10 |
25 |
60 |
150 |
| Drive (kW) |
18.5-22 |
37-45 |
75-90 |
160-250 |
| Weight (kg) |
1250 |
2250 |
3600 |
6700 |

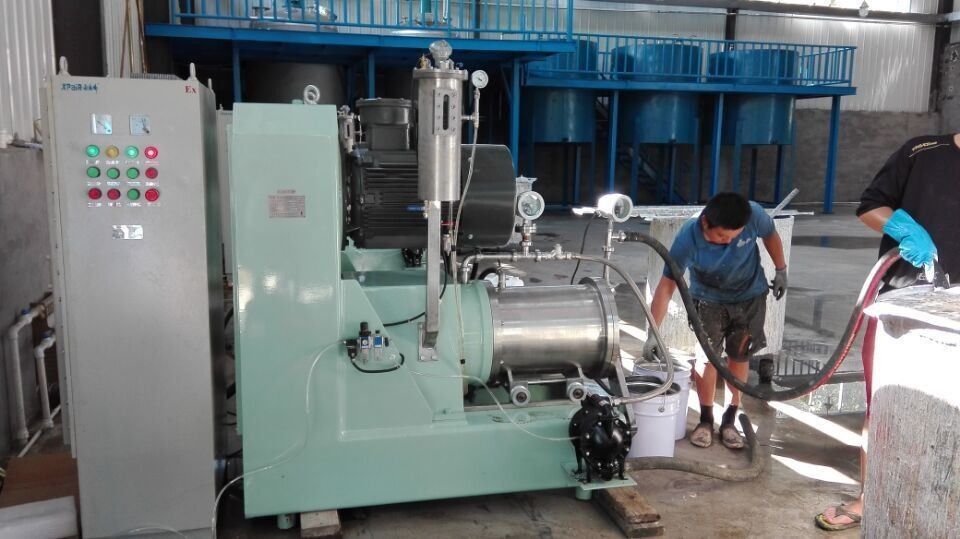

Production Line
Professional Services
We provide comprehensive technical support including on-site installation and operator training services at your facility location.
Packaging & Shipping
All equipment is securely packaged in fumigation wooden boxes. Grinding media is typically included and shipped together with the bead mill unit.
Industry Exhibitions
Note: Technical specifications may vary for customized configurations.
