Name: 4L Bead Mill Machine Turbo Nano Grinder Machine Ceramic Structure
Brand: Chongqing Degold Machine Co., Ltd.
SKU: ZM4.0DB5511-T
Availability: InStock

Home > products > Bead Mill Machine >

4L Bead Mill Machine Turbo Nano Grinder Machine Ceramic Structure

4l bead mill machine

bead mill machine turbo

turbo nano grinder machine

Place of Origin:

Chongqing, China

Brand Name:

DEGOLD

Certification:

Model Number:

ZM4.0DB5511-T

Request A Quote

4L Bead Mill Machine Turbo Nano Grinder Machine Ceramic Structure

Product Details

Grinding Chamber Volume:

Batch Size:

30-300L/h

Main Motor Power:

18.5kw

Inner Grinding Chamber Material:

Ceramic

Grinding Discs Material:

Ceramic

Raw Materials Transfer Pump:

Diaphragm Pump

Highlight:

4l bead mill machine

bead mill machine turbo

turbo nano grinder machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US $18,000.00-25,000.00

Packaging Details

Non fumigation wood packaging

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

30 set months

ISO9001 2008 Certified Horizontal Nano Attritor Pearl Mill for Inkjet ZM-K Model

Get Best Price

ZM25-K 25L Horizontal Pin Type Sand Bead Mill for High Capacity Paint Production

Get Best Price

Degold Zm 60 Liters Horizontal Pin Type Bead Mill Sieve Separator 75000/90000W Power

Get Best Price

Wet Grinding ZM150-K Degold 150 Liters Pin Type Bead Mill with Double Mechanical Seal

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

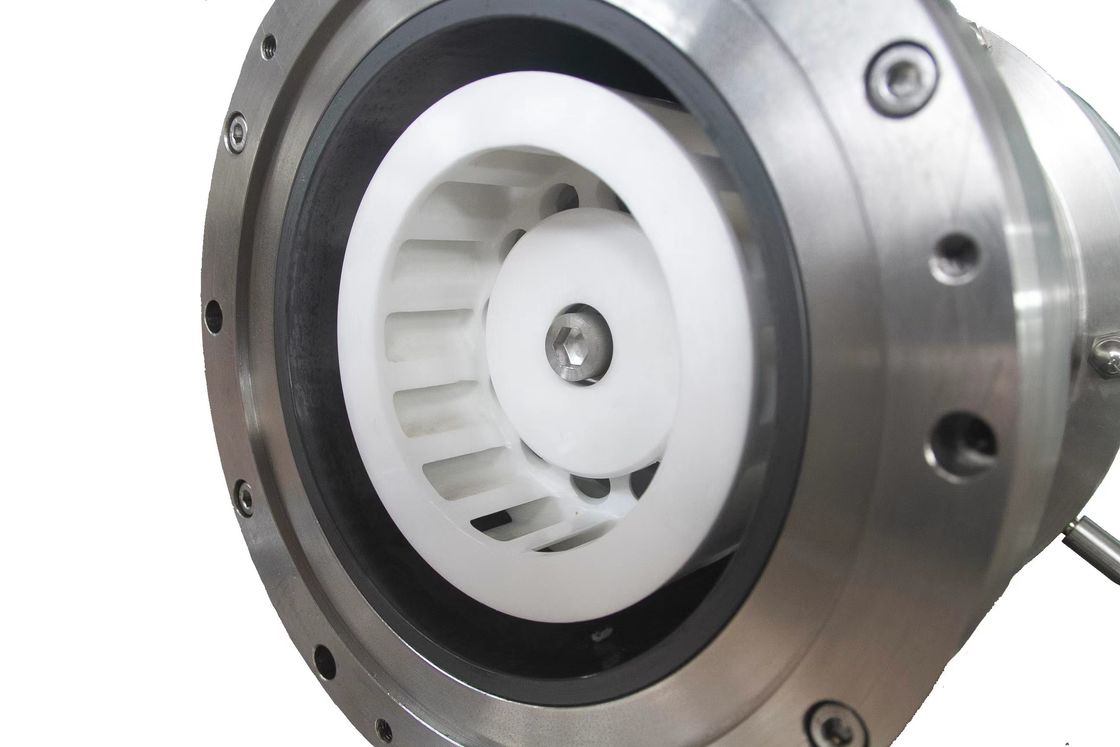

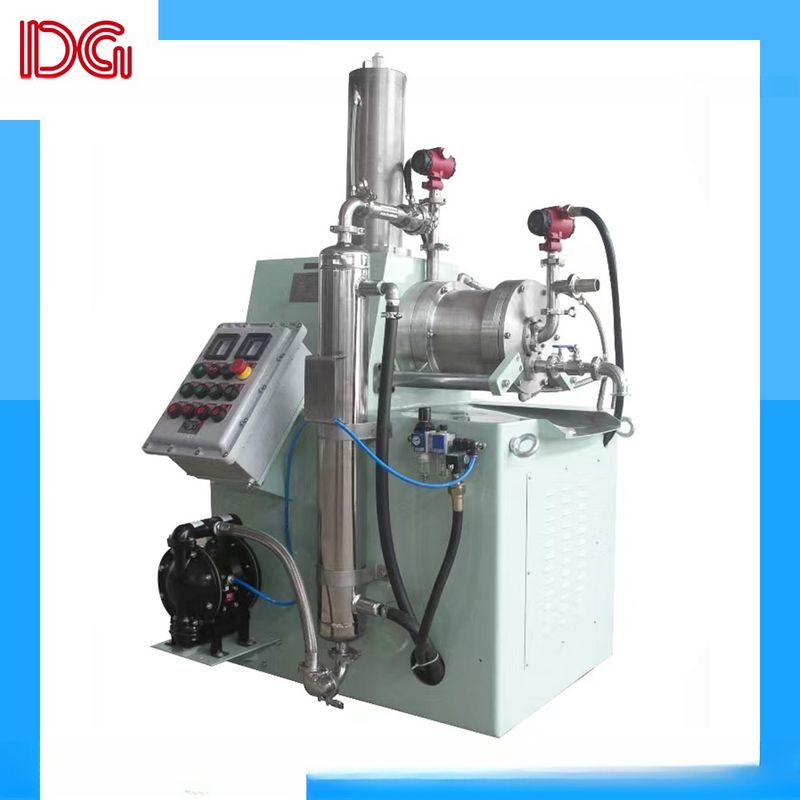

4l Series Turbo Bead Mill Machine Ceramic Structure Nano grinding equipment

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.

Agrochemicals	Pesticide, Herbicide, Fertilizer, SC
Ceramic Industry	Ceramic inks, Ceramic pigments
Printing Inks	Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes	Pigment, Titanium dioxide
Paint and Coating	Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals	Calcium carbonate, Pharmaceuticals, Cosmetics

ZM-T Series:

Type	ZM8-T	ZM18-T	ZM25-T	ZM60-T
Grinding chamber volume (l)	4	18	25	60
Batch size (l)	100-1500	300-2500	400-3000	500-6000
Drive (kW)	18.5-22	37-45	45-55	75-90
Length (mm)	1400	1800	1900	2300
Width (mm)	800	1050	1050	1250
Height (mm)	1700	1900	1900	2150
Weight (kg)	900	1800	2000	3600
Note: Technical data are different if there are some customized constructions.
