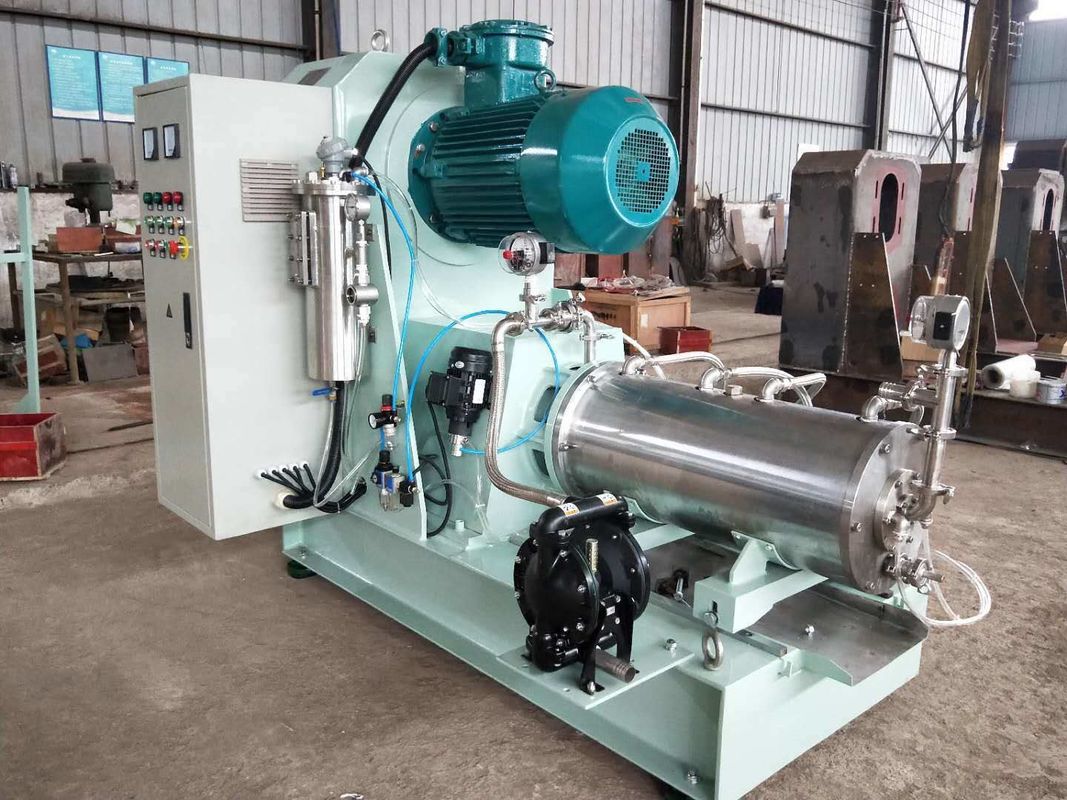

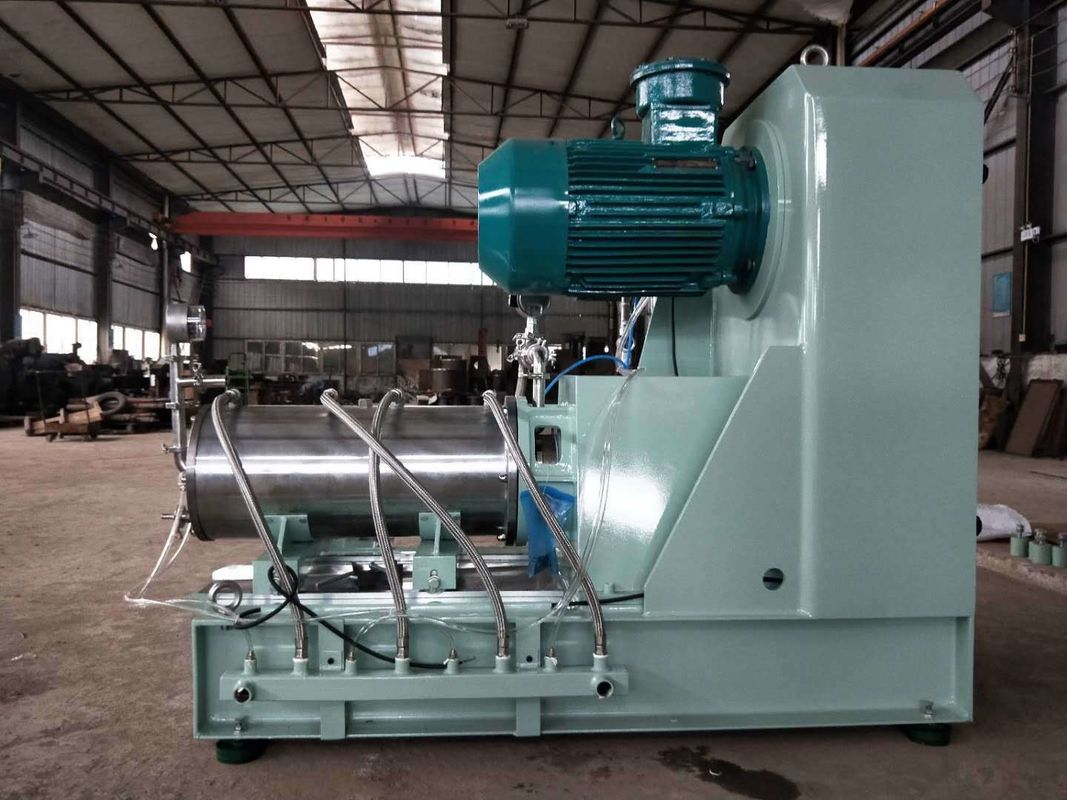

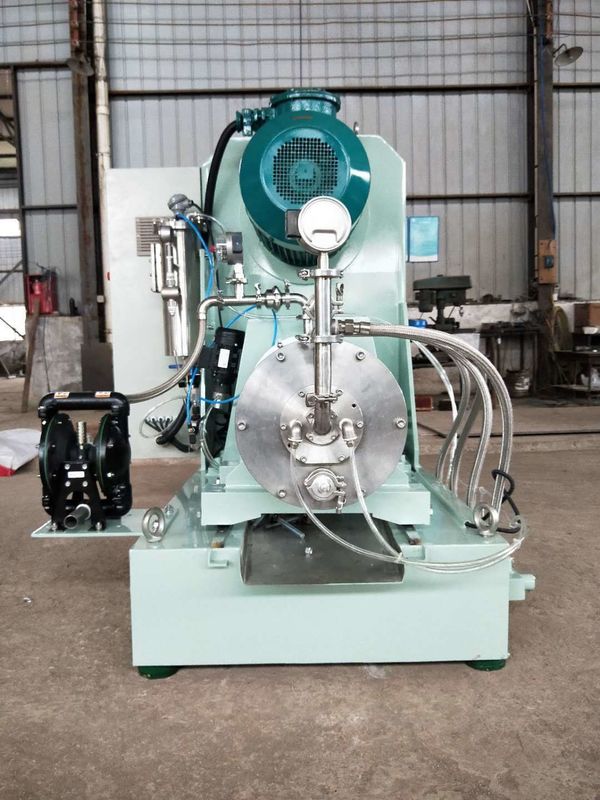

ISO9001 2008 Certified Horizontal Nano Attritor Pearl Mill for Inkjet ZM-K Model
DEGOLD bead mills and sand mills are designed for continuous wet grinding of solids in liquid materials to reduce particle size. We manufacture five distinct series to meet various industrial requirements.
Available Series
| Series |
Type |
| Series ZM |
Horizontal bead mills - grinding discs type |
| Series ZM-X |
Horizontal bead mills |
| Series ZM-E |
Horizontal bead mills |
| Series ZM-K |

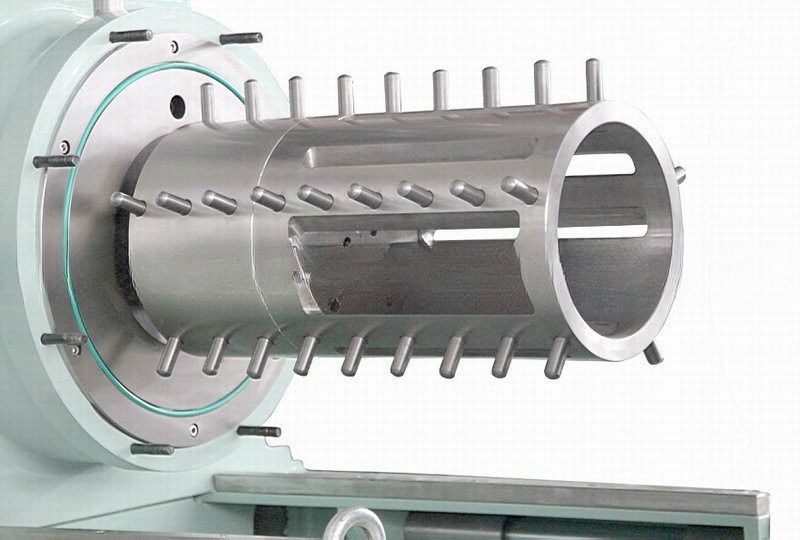

Horizontal bead mills - pin type |
| Series ZM-T |
Horizontal bead mills - turbo type |
Operating Principle
The rotary grinding shaft drives all grinding mediums within the grinding chamber. These mediums transfer energy to the materials, effectively reducing particle size. A gap separator within the horizontal bead mills separates the final products from the grinding mediums, making them suitable for formulations with different viscosities.
Various materials can be selected for the horizontal bead mills interior components, including SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic, and other specialized materials.
Industrial Applications
| Industry |
Applications |
| Agrochemicals |
Pesticide, Herbicide, Fertilizer, SC |
| Ceramic Industry |
Ceramic inks, Ceramic pigments |
| Printing Inks |
Inkjet, Screen printing inks, Flexo printing inks |
| Pigments and Dyes |
Pigment, Titanium dioxide |
| Paint and Coating |
Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat |
| Minerals |
Calcium carbonate, Pharmaceuticals, Cosmetics |
Technical Specifications
ZM Series Technical Data
| Model |
ZM0.3 |
ZM1.4 |
ZM5 |
ZM15 |
ZM20 |
ZM30 |
ZM50 |
| Effective grinding chamber volume (L) |
0.3 |
1.4 |
5 |
15 |
20 |
30 |
50 |
| Main motor power (kW) |
0.75 |
2.2 |
7.5 |
15 |
18.5 |
22 |
30 |
| Grinding shaft rotary speed (r/min) |
0-1500 |
0-2800 |
1650 |
1200 |
1200 |
1120 |
900 |
| Adjustable materials flow (L/min) |
|
0-1 |
0-2 |
0-2 |
0-10 |
0-10 |
0-60 |
| Max. cooling water consumption (t/h) |
|
0.5 |
1 |
1 |
2 |
2 |
2.5 |
| Estimated productivity (kg/h) |
|
2-20 |
12-120 |
30-300 |
40-400 |
50-600 |
100-1000 |
Note: Technical data may vary with customized constructions.
ZM-X Series Technical Data
| Model |
ZM5-X |
ZM15-X |
ZM20-X |
ZM30-X |
ZM50-X |
ZM100-X |
ZM200-X |
| Effective grinding chamber volume (L) |
5 |
15 |
20 |
30 |
50 |
100 |
200 |
| Main motor power (kW) |
11 |
18.5 |
22 |
30 |
37/45 |
45/55 |
55/75 |
| Grinding shaft rotary speed (r/min) |
1650 |
1200 |
1200 |
1120 |
900 |
700 |
550 |
Note: Technical data may vary with customized constructions.
ZM-E Series Technical Data
| Type |
ZM20-E |
ZM50-E |
ZM100-E |
ZM200-E |
ZM300-E |
ZM500-E |
ZM1000-E |
| Grinding chamber volume (L) |
20 |
50 |
100 |
200 |
300 |
500 |
1000 |
| Drive (kW) |
18.5/22 |
37/45 |
55/75 |
75/90 |
90/110 |
160/200 |
315 |
Note: Technical data may vary with customized constructions.
ZM-K Series Technical Data
| Type |
ZM10-K |
ZM25-K |
ZM60-K |
ZM150-K |
| Grinding chamber volume (L) |
10 |
25 |
60 |
150 |
| Drive (kW) |
18.5-22 |
37-45 |
75-90 |
160-250 |
Note: Technical data may vary with customized constructions.
ZM-T Series Technical Data
| Type |
ZM8-T |
ZM18-T |
ZM25-T |
ZM60-T |
| Grinding chamber volume (L) |
8 |
18 |
25 |
60 |
| Drive (kW) |
18.5-22 |
37-45 |
45-55 |
75-90 |
Note: Technical data may vary with customized constructions.
Production Line
Professional Services
We provide comprehensive technical support by sending one or two technicians to your location for professional installation and training services.
Packaging & Shipping
All equipment is securely packaged in fumigation wooden boxes. The grinding medium is typically packed together with the bead mill for convenience and protection during transit.

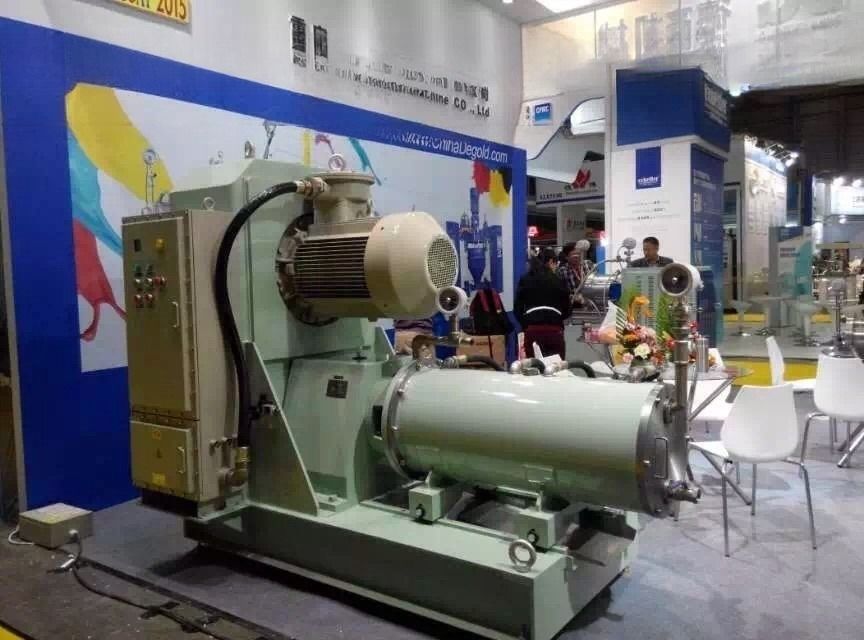

Industry Exhibitions
