Customized Request Full Ceramic Pin Type Bead Mill for Suitable Grinding Medium Zro2
"ZM6S5511-K" is the 6 liters horizontal PIN type bead mill.
Specification
1) 6L
2) Double mechanical seal
3) Non Ex proof

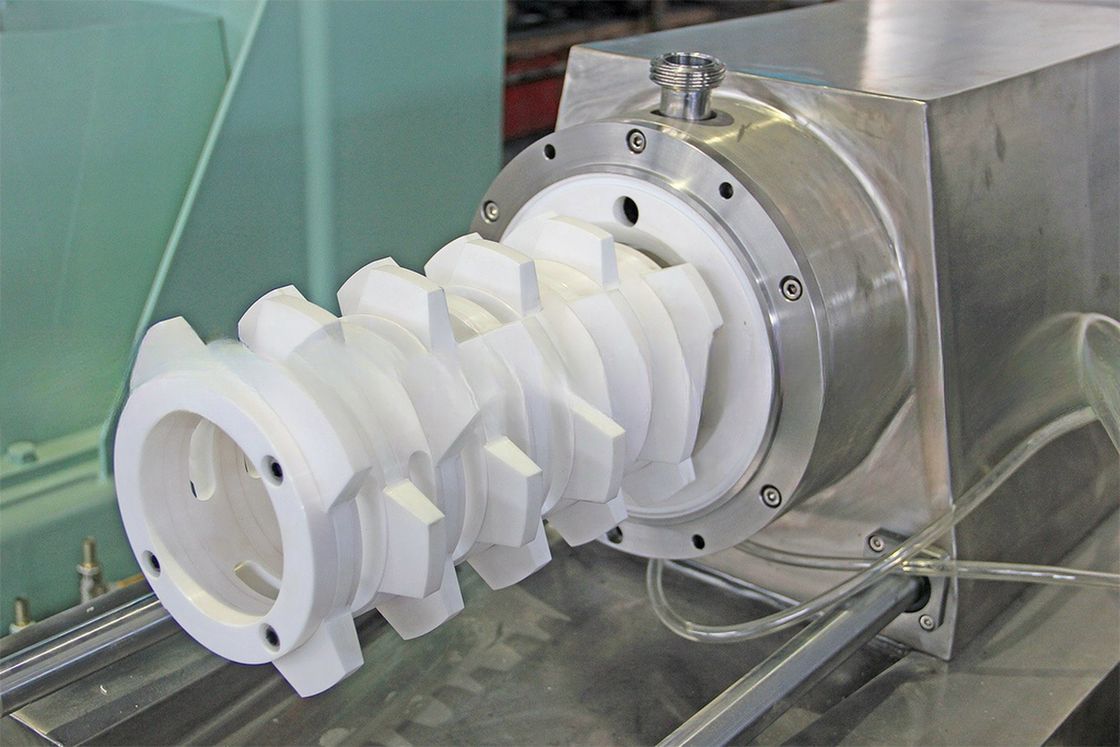

4) Ceramic for inner grinding chamber and grinding pins
5) Double diaphragm fluid transfer pump
6) With AC drive
7) Static gap separator suitable for 0.1-0.2mm grinding medium
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Production Line:

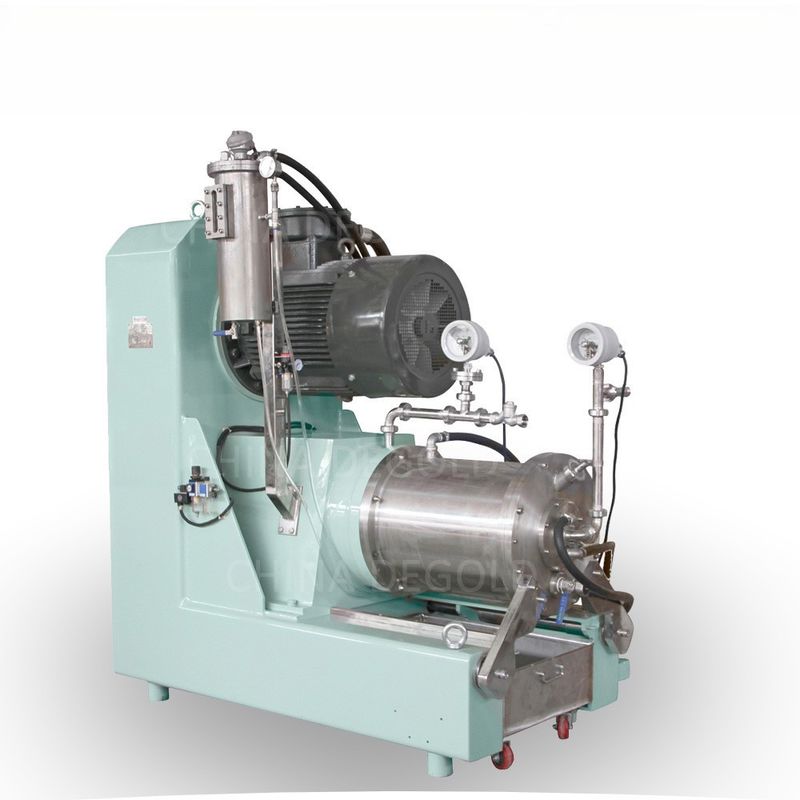

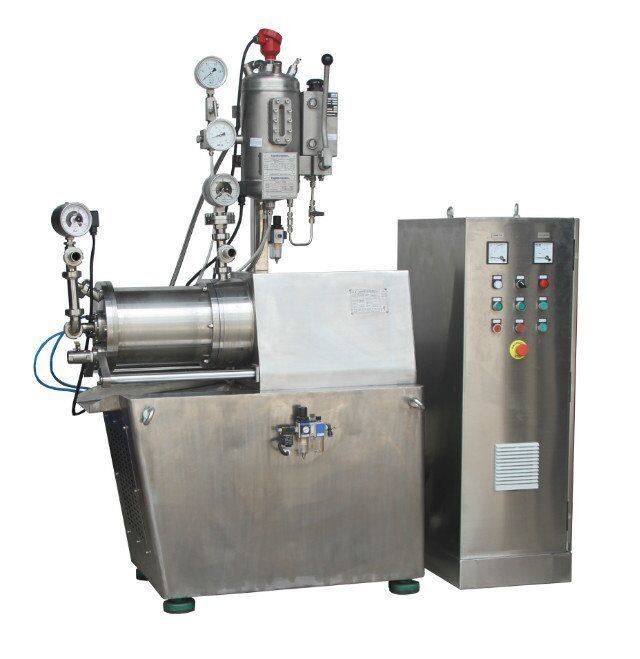

Horizontal Bead Mill (ZM, ZM-X, ZM-E, ZM-K)
Degold ZM seires bead mills are suitable for continuous wet grinding of solids in liquid materials, and they are widely used in paint, coating, ink, pigment, color paste, cosmetic, pesticide, non-metal mines industries.
There are various models such as 0.3L, 1.4L, 5L, 15L, 20L, 30L, 50L, 60L, 100L, 200L, 250L.
Grinding Container: Jacked with exchangeable inner cylinder.
Cooling System: Grinding container with spiral jacket for cooling water circulation.
Shaft Seal: ZM0.3: Lip seal, the others: Single mechanical seal or double mechanical seal.
Separator: Completely adjustable, self-cleaning dynamic gap separator, static gap separator.
Pump Type: Double diaphragm fluid transfer pump, gear pump, screw pump.
Electrical Control: Common control panel or explosion-proof control panel.
Safety and Monitoring Instruments: Pressure gauge in mill inlet and thermometer in mill outlet.
Materials Options: Machine parts, which contact the product and are subject to wear, are available in different materials, such as hardened steel, stainless steel, hard chrome-plated stainless steel, mold steel, ceramic.
Because there are different constructions mills here, please feel free to contact with us, we will recommend you the most suitabl e horizontal bead mill. Following table is only for reference. Different kinds constructions bead mills are different. We will prepare the exact introduction for you according to your production requirement.
