Horizontal Bead Mill for Chemical Applications with 50L Capacity and Customized Request Options

bead mill companies China zm5k conical

China companies zm5k conical bead mill

companies China zm5k conical bead mill

Request A Quote

Product Details

Model NO.:

ZM30S3311-X

Warranty:

12 Months

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Function:

Reduce Particle Size

Bead Mill Type:

Disc Type, Turbo Type, Pin Type

Transport Package:

Fumigated Wooden Box

Specification:

50L, 60L

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

1000sets/Year

Type:

Disc Grinder

Object:

Milling Cutter

Application:

Chemical

Ex Proof Type:

Ex Proof And Non Ex Proof

Cooling Water Jacket:

Yes

Certification:

Customization:

Available | Customized Request

Highlight:

bead mill companies China zm5k conical

China companies zm5k conical bead mill

companies China zm5k conical bead mill

Payment & Shipping Terms

Industrial Bead Mill Wet Grinding Machine with 100L Cylinder Volume 1000 to 6000 RPM and Stainless Steel Construction

Get Best Price

Bead Mill Wet Grinding Machine with Mechanical Seal Ceramic Inside Parts and 1000 to 6000 RPM for Industrial Applications

Get Best Price

Industrial Bead Mill Wet Grinding Machine with Stainless Steel Construction Sieve Separator and Cooling Water Jacket for Particle Size Reduction

Get Best Price

Bead Mill Wet Grinding Machine with 100L Cylinder Volume Zirconia Beads and Mechanical Seal for Industrial Applications

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

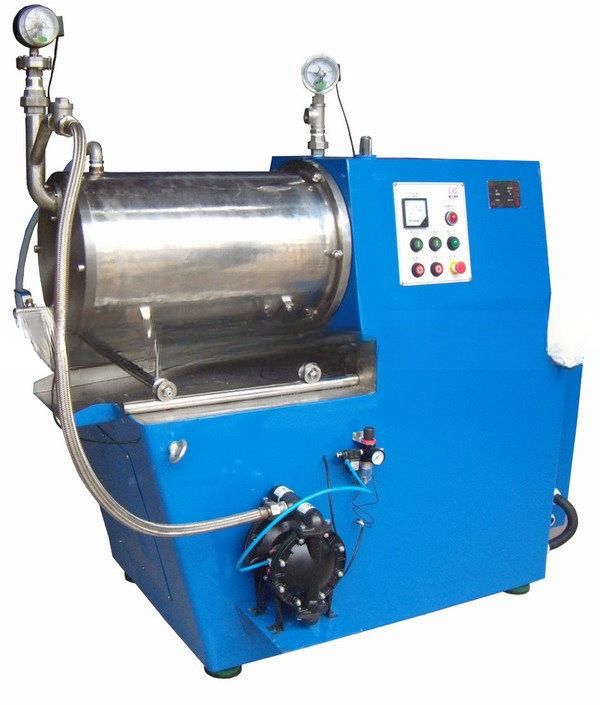

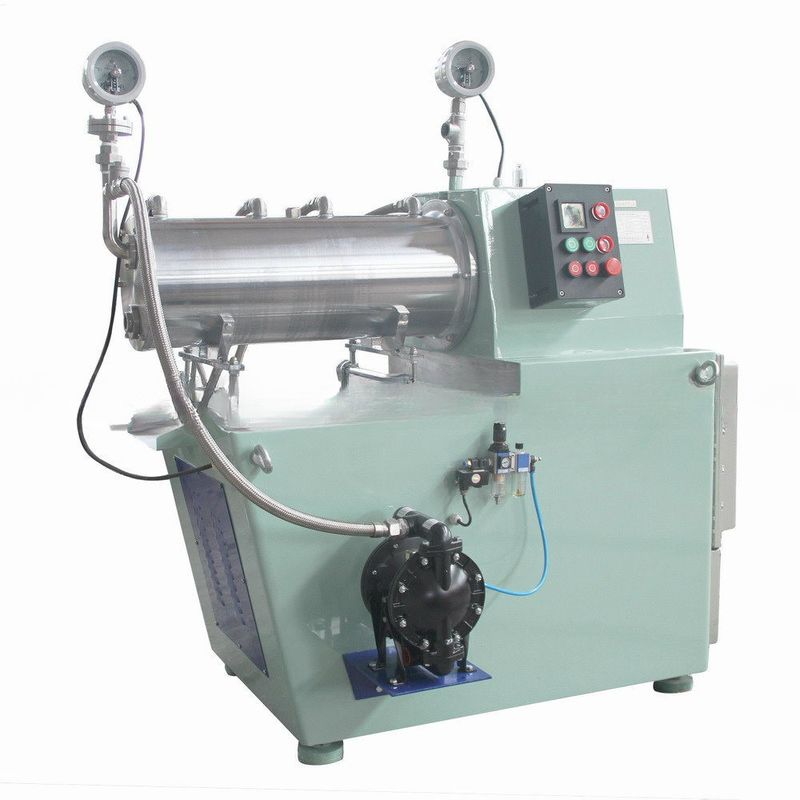

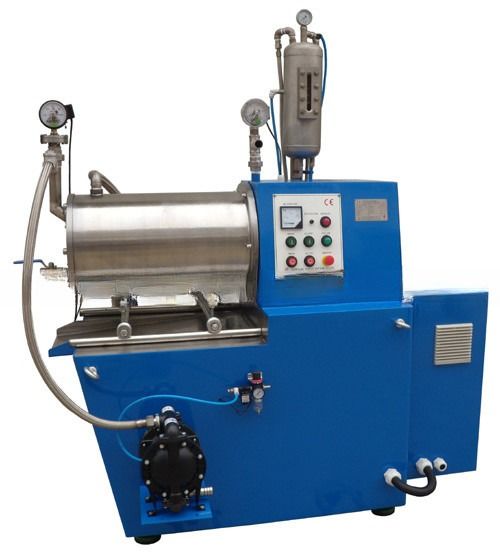

Horizontal Paint Mixer Grinding Bead Mill

DEGOLD ZM series horizontal bead mill is a wet-grinding machine designed for dispersing low, medium, and high viscosity materials. The specialized dispersion discs, appropriate grinding beads, and functional mechanical seals ensure optimal performance and efficiency.

Customers can customize the bead diameter, dispersing shaft material, and dispersion discs to enhance product quality. With multiple models available featuring effective volumes from 0.3L to 250L, we select the ideal configuration based on your production formulation requirements.

Applications

"Series ZM" horizontal bead mills	grinding discs type bead mills
"Series ZM-X" horizontal bead mills
"Series ZM-E" horizontal bead mills
"Series ZM-K" horizontal bead mills	pin type bead mills
"Series ZM-T" horizontal bead mills	turbo type bead mills

Principle of Operation

The rotary grinding shaft drives all grinding mediums within the grinding chamber. These mediums transfer power to the materials, effectively reducing particle size. The integrated gap separator within the horizontal bead mills separates products from grinding mediums, making them suitable for various viscosity formulations.

Various materials can be selected for internal components, including SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic, and more.

Technical Specifications

ZM Series

Model	ZM0.3	ZM1.4	ZM5	ZM15	ZM20	ZM30	ZM50
Effective grinding chamber volume (L)	0.3	1.4	5	15	20	30	50
Main motor power (kW)	0.75	2.2	7.5	15	18.5	22	30
Grinding shaft rotary speed (r/min)	0~1500	0~2800	1650	1200	1200	1120	900
Adjustable range of materials flow (L/min)		0~1	0~2	0~2	0~10	0~10	0~60
Max. cooling water consumption (t/h)		0.5	1	1	2	2	2.5
Estimated productivity (kg/h)		2~20	12~120	30~300	40~400	50~600	100~1000
Dimension (mm) - Length	640	650	1250	1560	1600	1860	2100
Dimension (mm) - Width	410	570	900	1050	1050	1100	1150
Dimension (mm) - Height	485	885	1250	1550	1550	1550	1650
Net weight (kg)	50	500	700	800	980	1100	1300
