15L Grinding Chamber Sand Bead Mill Ex Proof Horizontal Bead Mill

15L Grinding Chamber Sand Bead Mill Ex Proof Horizontal Bead Mill

horizontal bead mill

bead mill ex proof

15l bead grinding mill

Contact Us
Request A Quote
Product Details
Model NO.:
ZM
Seal Type:
Mechanical Seal
Pump Type:
Diaphragm Pump
Mill Speed Adjustment Way:
With Inverter
Mill Type:
Horizontal
Transport Package:
Fumigated Wooden Box
Specification:
CE, SGS, ISO9000
Trademark:
DEGOLD
Origin:
Chongqing, China
HS Code:
8479820090
Supply Ability:
500sets/Year
Grinding Chamber Volume:
15L
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Ex Proof Type:
Ex Proof And Non Ex Proof
Application:
Chemical
Inner Grinding Cylinder Material:
Mold Steel
Grinding Disc Material:
Mold Steel
Customization:
Available | Customized Request
Highlight:

horizontal bead mill

,

bead mill ex proof

,

15l bead grinding mill

Payment & Shipping Terms
Product Description
15L Grinding Chamber Volume Sand Bead Mills for Industrial Applications

Applications
Paint
  • Automotive Paint
  • Top Coat
  • Clear Coat
  • Cathodic Dip Coating
  • Coil Coating
  • Fillers
  • Construction Paint
  • Wood Paint
  • Marine Paint
  • Dispersion Paint
  • Road Marking Paint
Printing Inks
  • Screen Printing Inks
  • Flexo Printing Inks
  • Rotogravure Inks
  • Sheet-fed
  • Ink jet
  • Heat-set
  • Cold-set
Agrochemistry
  • Fertilizer
  • Pesticides
  • Suspension Concentrate(SC)
Pigments / Dyes
  • Pigment Production
  • Titanium Dioxide
Ceramics / Glass
  • Ceramic Pigments
  • Table Ware / Sanitary Ware
  • Technical Ceramics
Ores / Minerals / Metals
  • Graphite
  • Talc
  • Calcium Carbonate
Life Science
  • Biotechnology
  • Cosmetics / Personal Hygiene
  • Pharmaceuticals
Food
  • Cocoa Liquor
More applications, please contact with us.


5/10/15L Sand Bead Mills Price

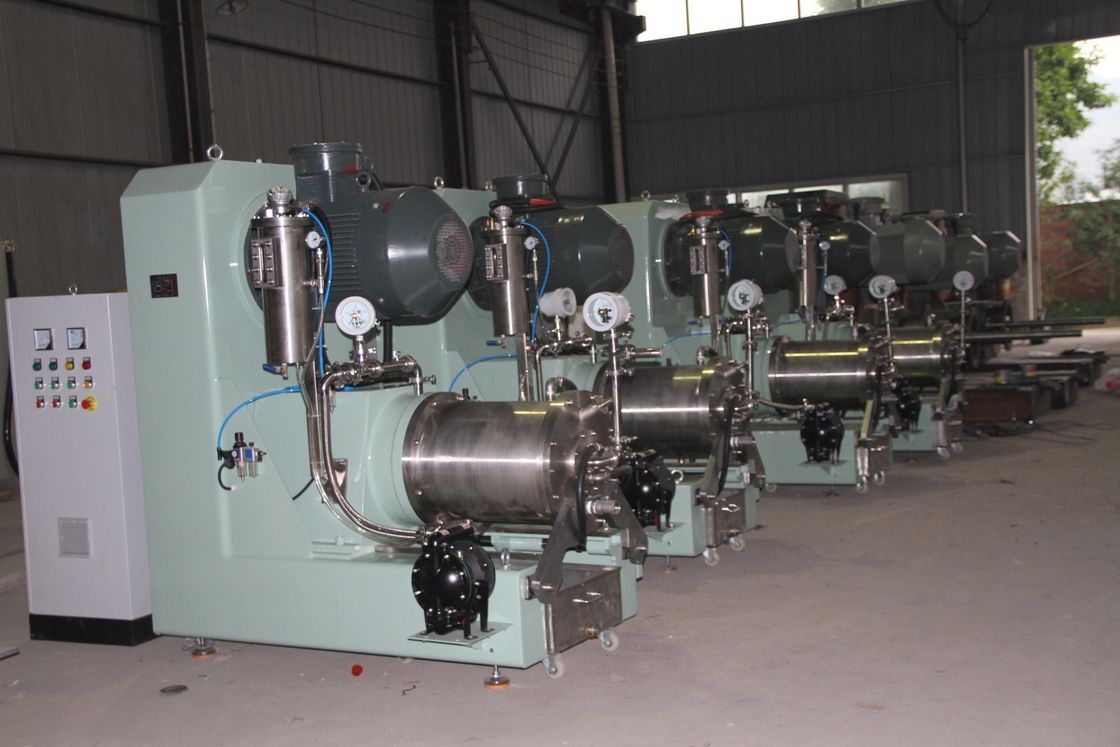

Production Line:
5/10/15L Sand Bead Mills Price

ZM series Introduction

Following is the technical table of ZM series bead mills produced by Chongqing Degold Machine Co., Ltd.

ZM SeriesZM0.3ZM1.4ZM5ZM15ZM20ZM30ZM50
Effective grinding chamber volume (L)0.31.4515203050
Main motor power (kW)0.752.27.51518.52230
Grinding shaft rotary speed (r/min)0~15000~28001650120012001120900
Adjustable range of materials flow (L/min) 0~10~20~20~100~100~60
Max. cooling water consumption (t/h) 0.511222.5
Estimated productivity (kg/h) 2~2012~12030~30040~40050~600100~1000
Length64065012501560160018602100
Width4105709001050105011001150
Height48588512501550155015501650
Net weight (kg)5050070080098011001300
Ex proof TypeEx proof / Non Ex proof
Seal TypeSingle Mechanical Seal / Double Mechanical Seal
Inner Grinding Cylinder MaterialSS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Grinding Disc MaterialSS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Pump TypeDiaphragm pump / Gear Pump / Screw pump
Mill Speed Adjustment WayWith inverter / Without inverter
Note: Technical data are different if there are some customized constructions.
We'd like to send you the suitable model bead mills for your production, please feel free to contact with us.

Series Of Horizontal Bead Mill

Following is the introduction of horizontal bead mills produced by Chongqing Degold Machine Co., Ltd.

SeriesDescriptionBrowse
ZM LABlaboratory bead mills are used for research and development.

volume:   0.3L |  1.4L

Browse Products
ZMZM series bead mills are suitable for middle viscosity water based and solvent based poducts wet grinding and dispersion.

volume:   5L |  15L |  20L |  30L |  50L

Browse Products
ZM-XZM-X series bead mills are suitable for nano meterswet grinding and dispersion.

volume:   5L |  15L |  20L |  30L |  50L |  100L |  200L

Browse Products
ZM-EZM-E series bead mills are rotor gap separator bead mills for nano wet grinding.

volume: 20L |  50L |  100L |  200L |  300L |  500L |  1000L

Browse Products
ZM-KZM-K series are conical pin typebead mills. This series bead mills are suitable for high viscosity materials wet grinding and dispersion.

volume:   6L |  10L |  25L |  60L |  150L

Browse Products
ZM-TZMT series are turbo designbead mills which are suitable for nano meters wet grinding and large productivity.

volume:   8L |  18L |  25L |  60L

Browse Products
Any question, please contact with us.
