Chemical Particle Size Reduction with 50 Litres Wet Grinding Nano Mill Optimal Solution

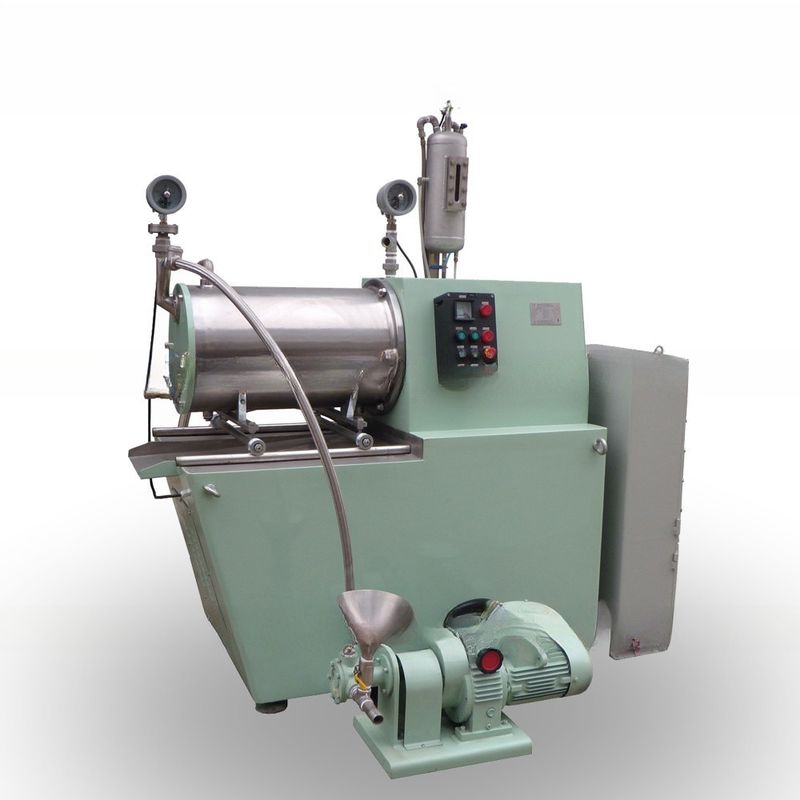

Horizontal Bead Mill (ZM, ZM-X, ZM-E, ZM-K)
Degold ZM seires bead mills are suitable for continuous wet grinding of solids in liquid materials, and they are widely used in paint, coating, ink, pigment, color paste, cosmetic, pesticide, non-metal mines industries.
There are various models such as 0.3L, 1.4L, 5L, 15L, 20L, 30L, 50L, 60L, 100L, 200L, 250L.
Production Line:
Grinding Container: Jacked with exchangeable inner cylinder.Cooling System: Grinding container with spiral jacket for cooling water circulation.
Shaft Seal: ZM0.3: Lip seal, the others: Single mechanical seal or double mechanical seal.
Separator: Completely adjustable, self-cleaning dynamic gap separator, static gap separator.
Pump Type: Double diaphragm fluid transfer pump, gear pump, screw pump.
Electrical Control: Common control panel or explosion-proof control panel.
Safety and Monitoring Instruments: Pressure gauge in mill inlet and thermometer in mill outlet.
Materials Options: Machine parts, which contact the product and are subject to wear, are available in different materials, such as hardened steel, stainless steel, hard chrome-plated stainless steel, mold steel, ceramic.
Because there are different constructions mills here, please feel free to contact with us, we will recommend you the most suitabl e horizontal bead mill. Following table is only for reference. Different kinds constructions bead mills are different. We will prepare the exact introduction for you according to your production requirement.

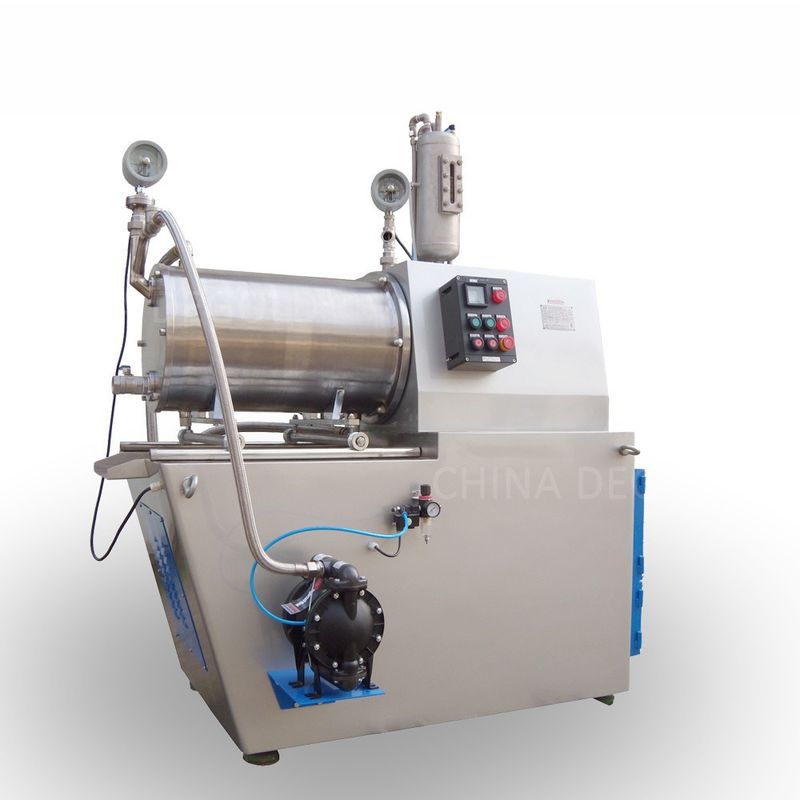

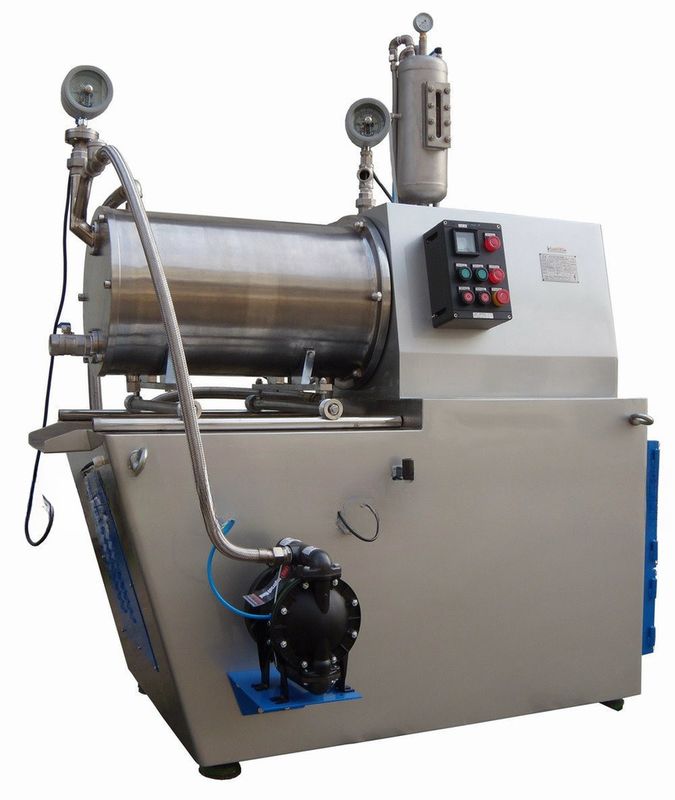

ZM50SB4410-E horizontal bead mill ADVANTAGES
1) 50 Litres,
2) Double mechanical seal,
3) Ex proof,
4) Tungsten carbide inner grinding chamber and grinding discs,
5) Double-diaphragm fluid transfer pump,
6) Gap separator, which is suitable for 0.1-0.2 grinding medium,
7) Nano grinding.
Technical Data:
| |
ZM50-E |
| Effective grinding chamber volume (L) |
50 |
| Main motor power (kW) |
37 |
| Grinding medium load (L) |
About 85% of the grinding chamber volume |
| Grinding shaft rotary speed (r/min) |
900 |
| Adjustable range of materials flow (L/min) |
0-60 |
| Max. cooling water consumption (t/h) |
2.5 |
