Disc Grinder Lab Bead Mill Bead Grinding Mill For Agrochemical

disc grinder lab bead mill

disc lab bead mill

disc bead grinding mill

Request A Quote

Disc Grinder Lab Bead Mill Bead Grinding Mill For Agrochemical

Product Details

Model NO.:

ZM1.4SB

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Object:

Milling Cutter

Transport Package:

Fumigation Wooden Box

Specification:

CE, SGS, ISO9000

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

100sets/Year

Type:

Disc Grinder

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment, Agrochemical Etc.

Usage:

For Lab Testing&Samples Production

Application:

Chemical

Customization:

Available | Customized Request

Highlight:

disc grinder lab bead mill

disc lab bead mill

disc bead grinding mill

Payment & Shipping Terms

Chemical Sand Mill Machine Lab Sand Mill In Paint Industry

Get Best Price

Lab Horizontal Bead Mill Grinding Mill Machine For Chemical Processing

Get Best Price

Pin Type Lab Bead Mill Used For Wet Grinding Laboratory Bead Mill

Get Best Price

Customized Lab Bead Mill Wet Grinding Bead Milling Machine

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

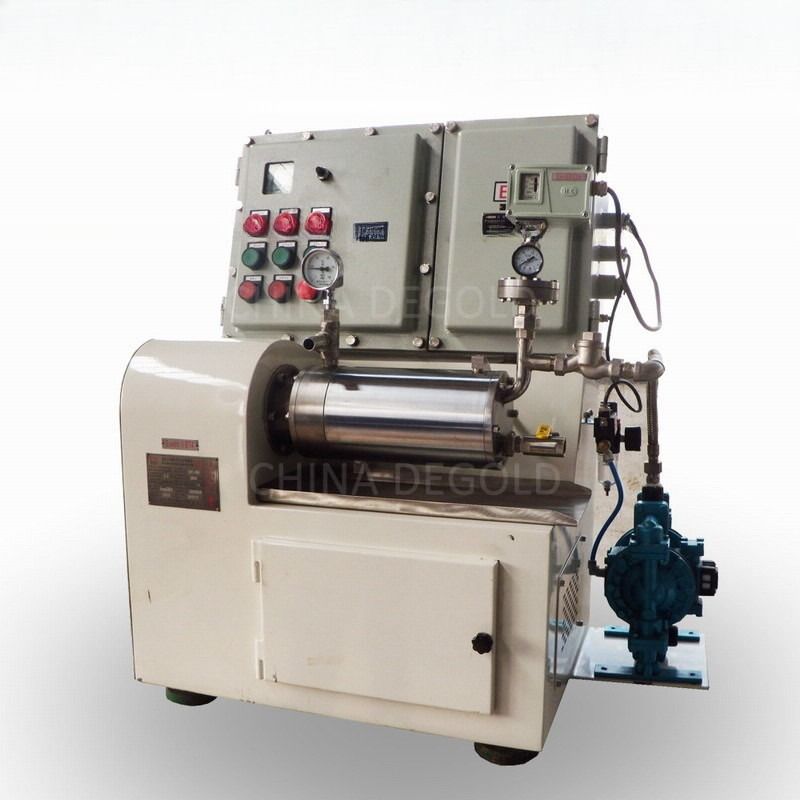

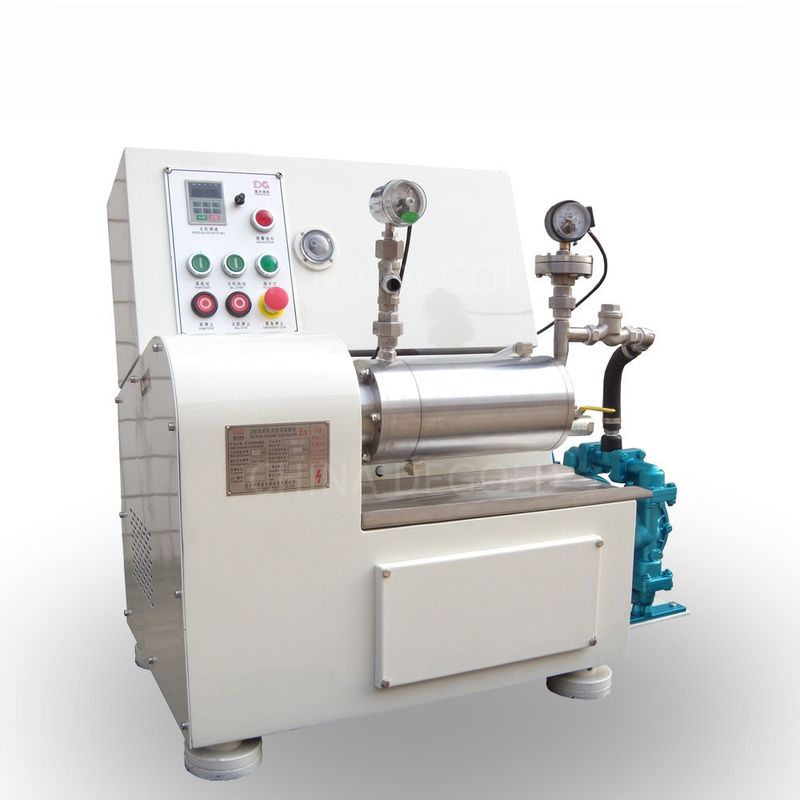

Disc Grinder Lab Grinding Bead Mill for Agrochemical Manufacturing Applications

Lab horizontal bead mill- Model (ZM1.4 Series)

Introduction:

ZM1.4 Series lab horizontal bead mills are the wet grinding discs type bead mills for R&D and samples production.

The grinding chamber volume is 1.4L.

Specification.

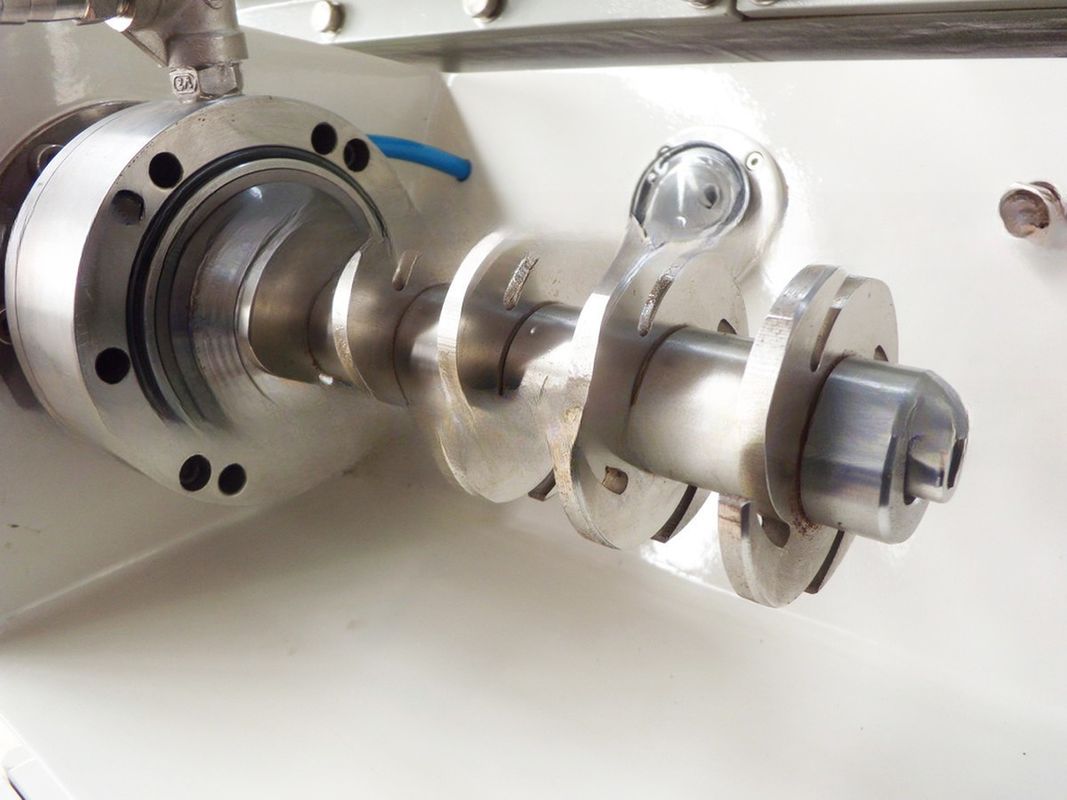

1) Mechanical seal, dynamic gap separator.

2) Small sizes grinding mediums can be used to make sure the precise lab analyze data.

3) It's easy to disassemble the grinding chamber for cleaning and formulations changes.

4) Continuous grinding, espcially suitable for various small batches/samples production.

5) AC drive controlling.

Option:

1) Different materials for inner grinding chamber and grinding discs selection includes the zirconia.

2) Different transfer pumps selection.

3) Ex proof or Non Ex proof selection for solvent based formulations and water based formulations.

Technical Data:

	ZM1.4 series
Effective cylinder volume (liters)	1.4
Main motor power (kW)	2.2
Grinding shaft rotary speed (r/min)	0~2800
Adjustable range of mateirals flow(L/min)	0~1
Max. cooling water consumption (t/hr)	0.5
Pump pressure (Mpa)	0.7
Compressed air consumption (m 3 /min)	0.2
Dimension (L×W×H) mm	650×570×885
Net weight (kg)	500
