Customized Lab Bead Mill Wet Grinding Bead Milling Machine

customized lab bead mill

lab bead mill wet grinding

wet grinding bead milling machine

Certification:

Request A Quote

Customized Lab Bead Mill Wet Grinding Bead Milling Machine

Product Details

Model NO.:

ZM1.4DB5511-X

Inside Parts Contact With Raw Materials:

Ceramic

Object:

Milling Cutter

Application:

Chemical

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

20 Sets Per Month

Type:

Disc Grinder

Mill Type:

Grinding Discs Type

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment, Agrochemical Etc.

Usage:

For Lab Testing&Small Batches

Customization:

Available | Customized Request

Highlight:

customized lab bead mill

lab bead mill wet grinding

wet grinding bead milling machine

Payment & Shipping Terms

Chemical Sand Mill Machine Lab Sand Mill In Paint Industry

Get Best Price

Lab Horizontal Bead Mill Grinding Mill Machine For Chemical Processing

Get Best Price

Pin Type Lab Bead Mill Used For Wet Grinding Laboratory Bead Mill

Get Best Price

Customized Lab Bead Mill Wet Grinding Bead Milling Machine

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

Customized Request Ceramic Lab Bead Mill for Wet Grinding and Particle Size Reduction
DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.

"Series ZM" horizontal bead mills:	grinding discs type bead mills
"Series ZM-X" horizontal bead mills:
"Series ZM-E" horizontal bead mills:
"Series ZM-K" horizontal bead mills:	pin type bead mills
"Series ZM-T" horizontal bead mills:	turbo type bead mills

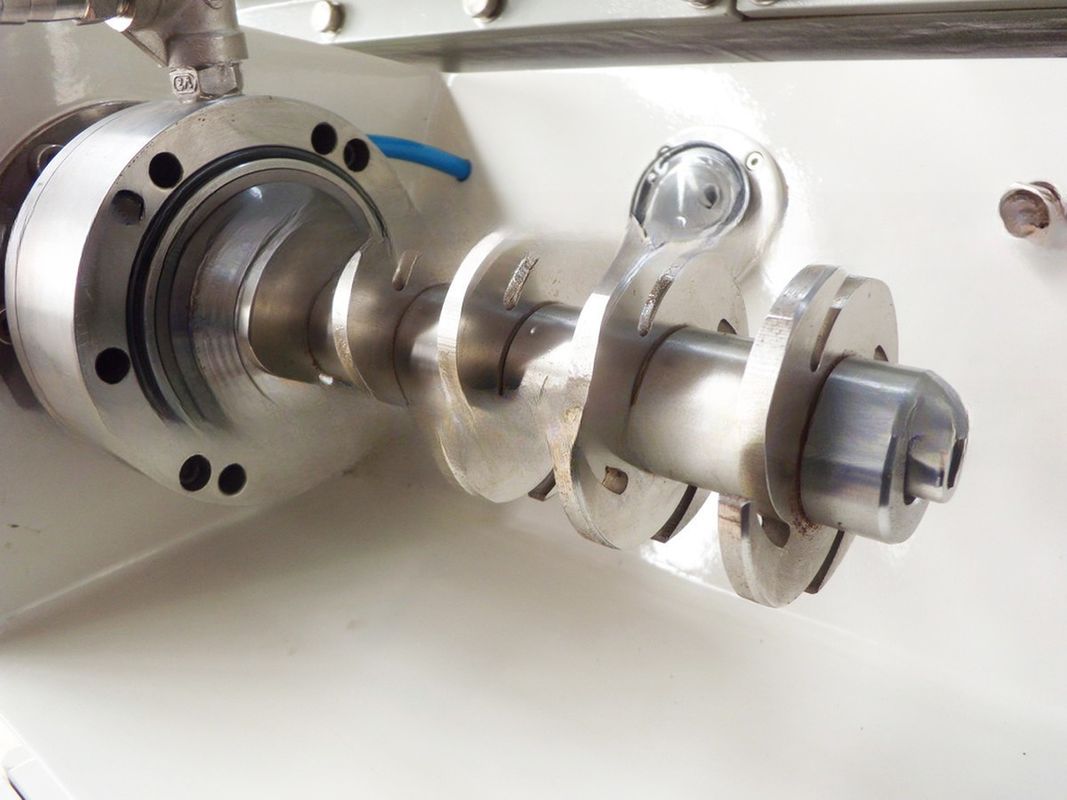

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.

Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.

Applications:

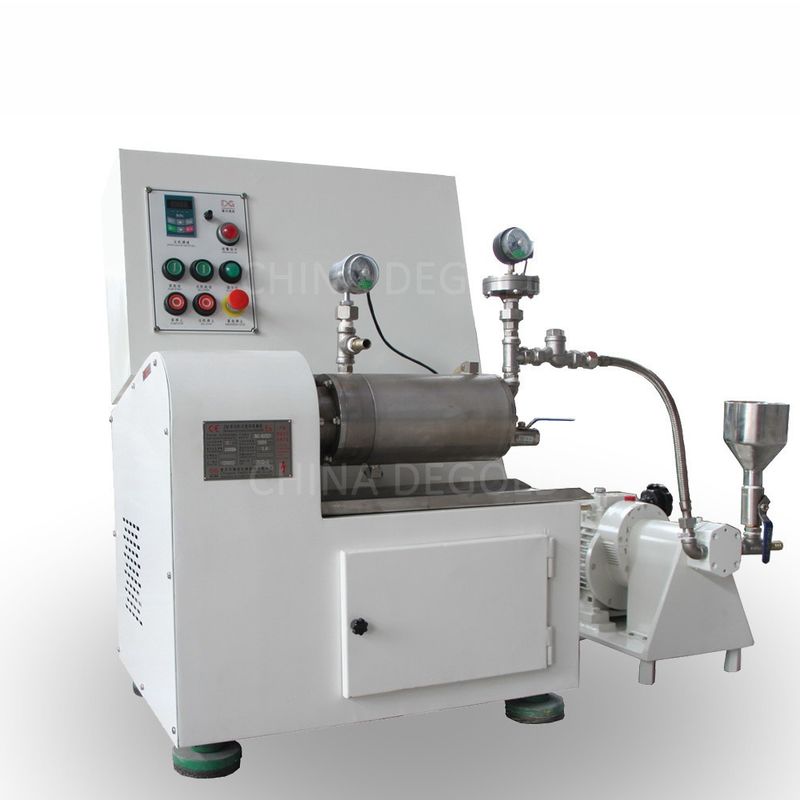

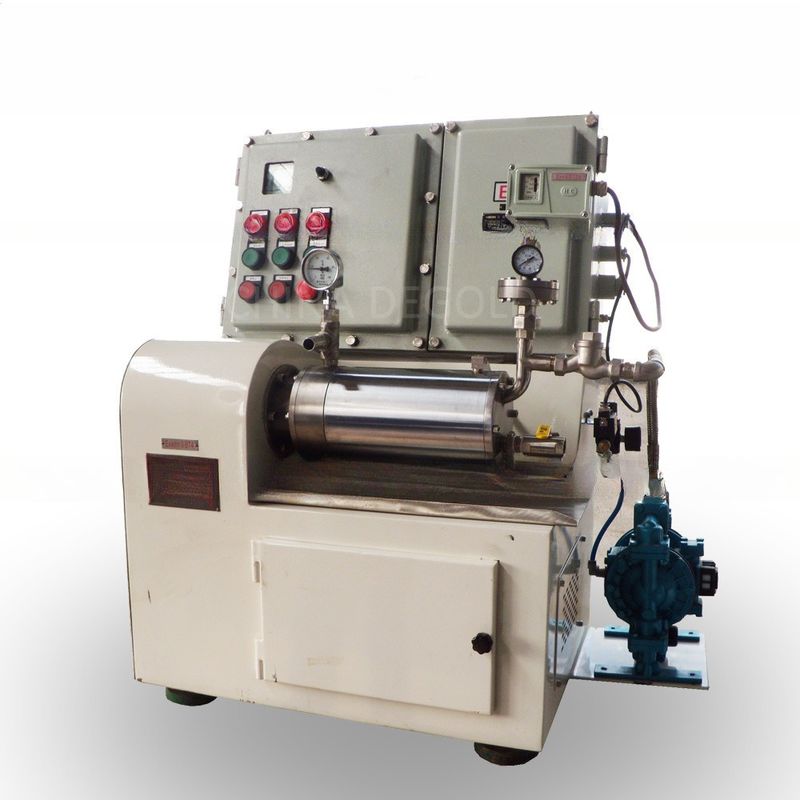

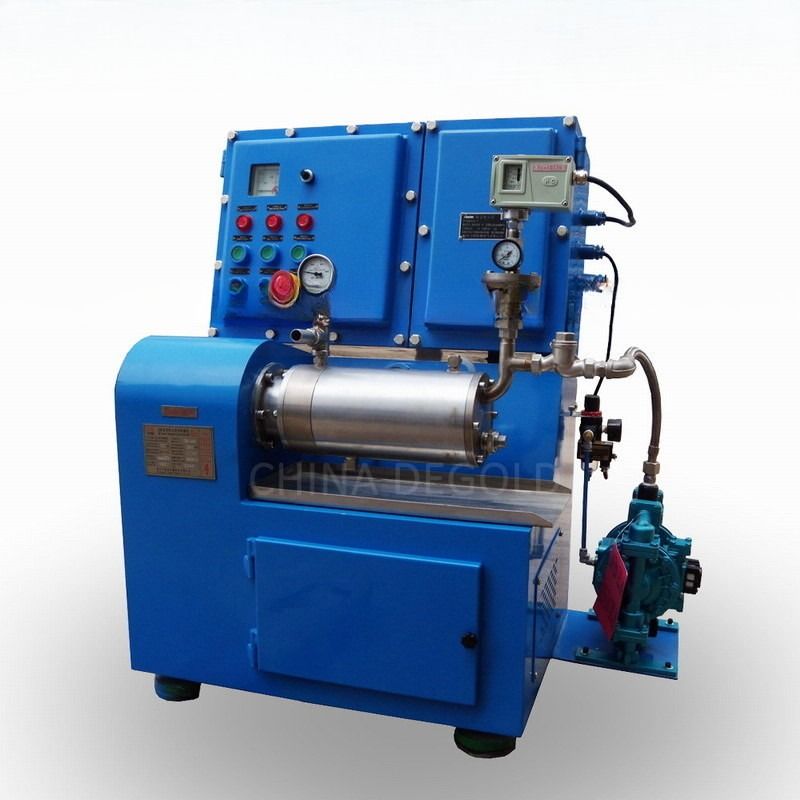

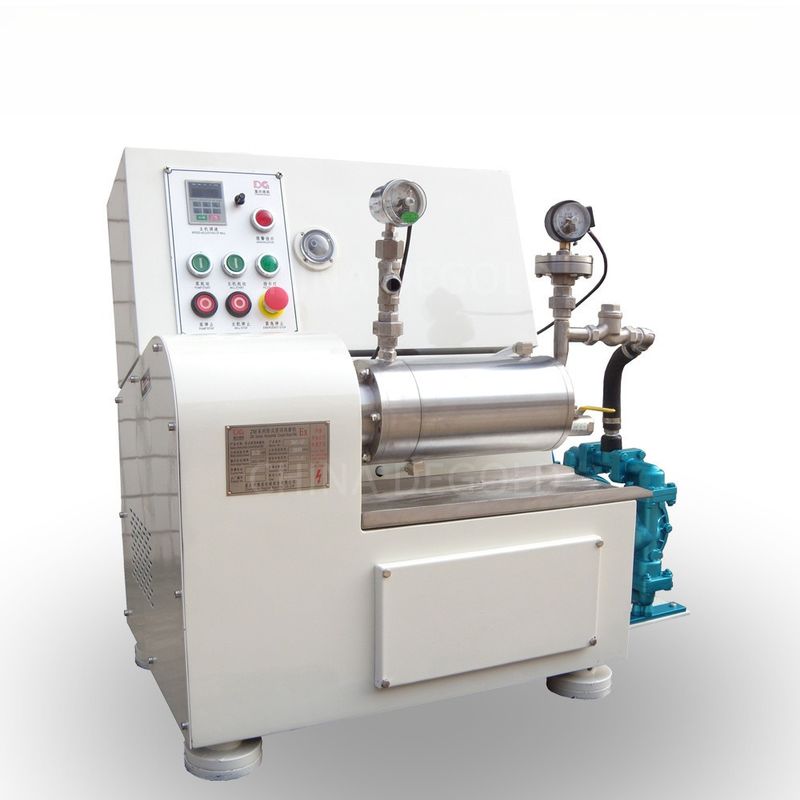

Lab horizontal bead mill- Model (ZM1.4 Series)

Introduction:

ZM1.4 Series lab horizontal bead mills are the wet grinding discs type bead mills for R&D and samples production.

The grinding chamber volume is 1.4L.

Specification:

1) Mechanical seal, dynamic gap separator.

2) Small sizes grinding mediums can be used to make sure the precise lab analyze data.

3) It's easy to disassemble the grinding chamber for cleaning and formulations changes.

4) Continuous grinding, espcially suitable for various small batches/samples production.

5) AC drive controlling.

Option:

1) Different materials for inner grinding chamber and grinding discs selection includes the zirconia.

2) Different transfer pumps selection.

3) Ex proof or Non Ex proof selection for solvent based formulations and water based formulations.

Ceramic Laboratory Horizontal Bead Mill for Inkjet Ink

	ZM1.4DB5511-X
Effective cylinder volume (liters)	1.4
Main motor power (kW)	2.2
Grinding shaft rotary speed (r/min)	0~2800
Adjustable range of mateirals flow(L/min)	0~1
Max. cooling water consumption (t/hr)	0.5
Pump pressure	0.7Mpa
Compressed air consumption (m 3 /min)	0.2
Dimension (L×W×H) mm	650×570×885
Net weight (kg)	500

Exhibition:

Customers Layout:
Ceramic Laboratory Horizontal Bead Mill for Inkjet Ink
