Masterbatch Dry Powder Mixer Small 1000L Industrial Powder Blending Equipment

1000L Container Volume PLC Control Plastic Color Masterbatch Powder Mixer for Needs

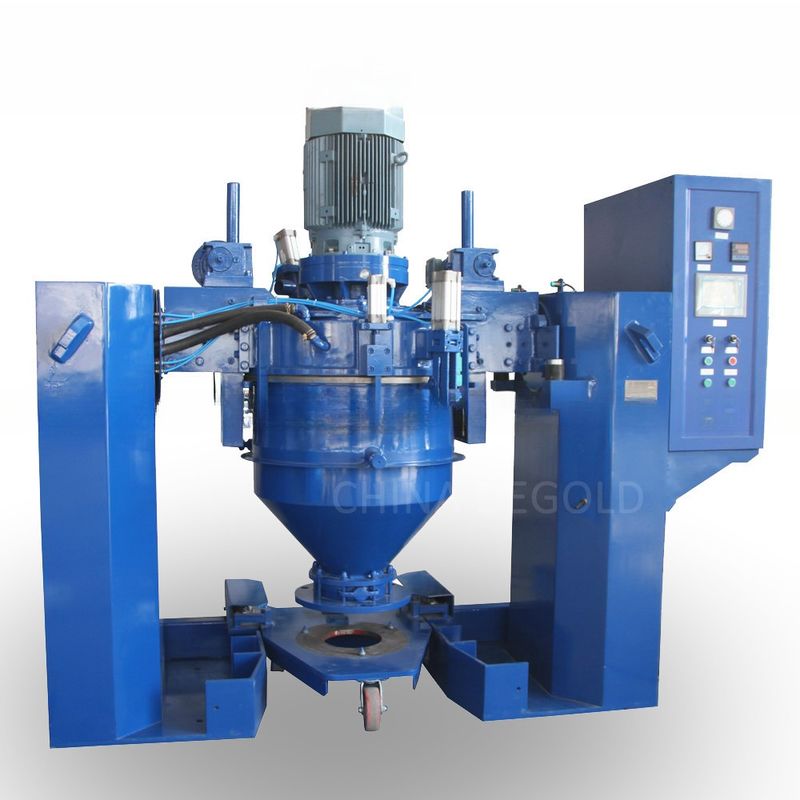

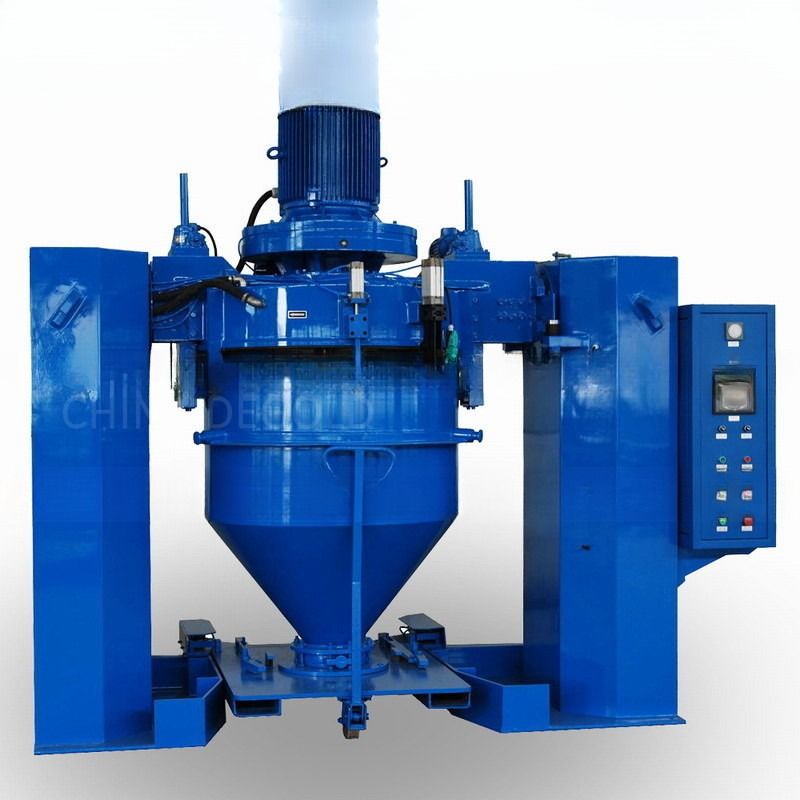

CM1000-CD Dust Ex Proof Automatic Container Mixer
Introduction

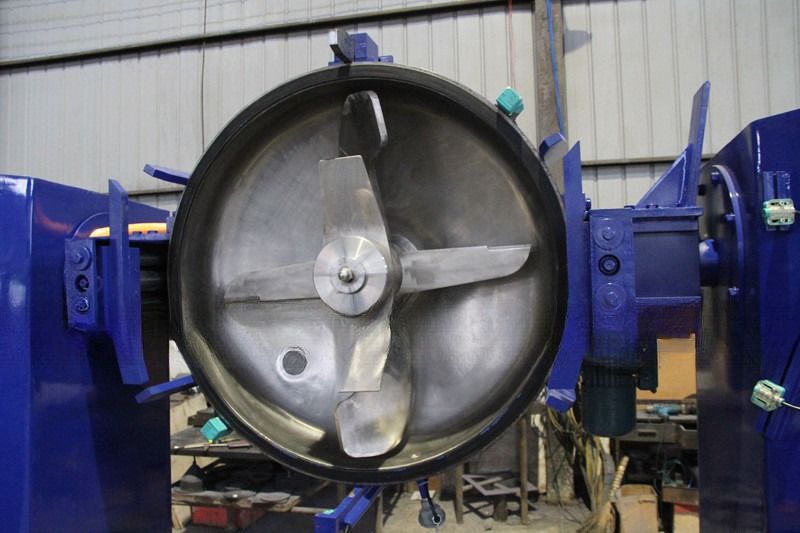

The DEGOLD CM series container mixer is widely applied in various powder and particle materials industries. With geometric shaped "Z" blade, any desired mixing result can be dependably obtained. The average mixing time is 3-6 min. Operator can add additional materials into mixer by outlet valve.

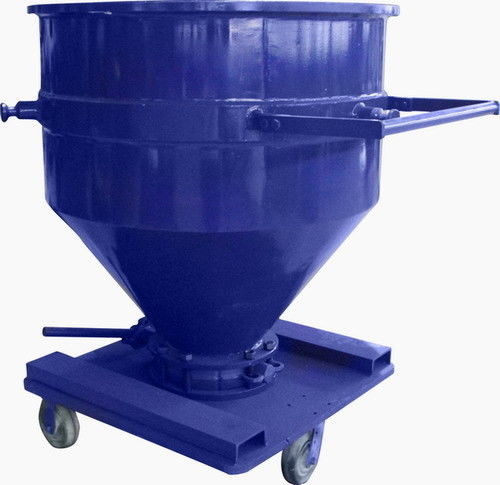

The container mixer consists of a mobile container and the actual mixer. Here, the container performs several functions from charging to emptying, because it serves as a transport container before and after mixing, as a mixing container during mixing, and as a storage container for subsequent further processing.


CM series container mixers can be equipped with following functions parts.
1. Dust proof,
2. Temperature measurement,
3. Injection hole,
4. Mixing head cooling,
5. Oxygen concentration measurement,
6. Dust Ex proof design.

Applications

Powder coating
Master batch (PE, PP, PA, PVC, PS, ABS, TPE, EPS...)
Dye concentrates
Additives (e.g. TiO2, CaCo3, Zn, MgO...)
Toner (premixtures and finished mixtures)
PVC (hard/soft) preparation (without cooling)
Metal compounds (MIM)
PTFE
Silicic acid with liquids
Brake linings
Leather fibers
Construction materials
Food
Cosmetics
Pencil and colored pencil leads

Advantages

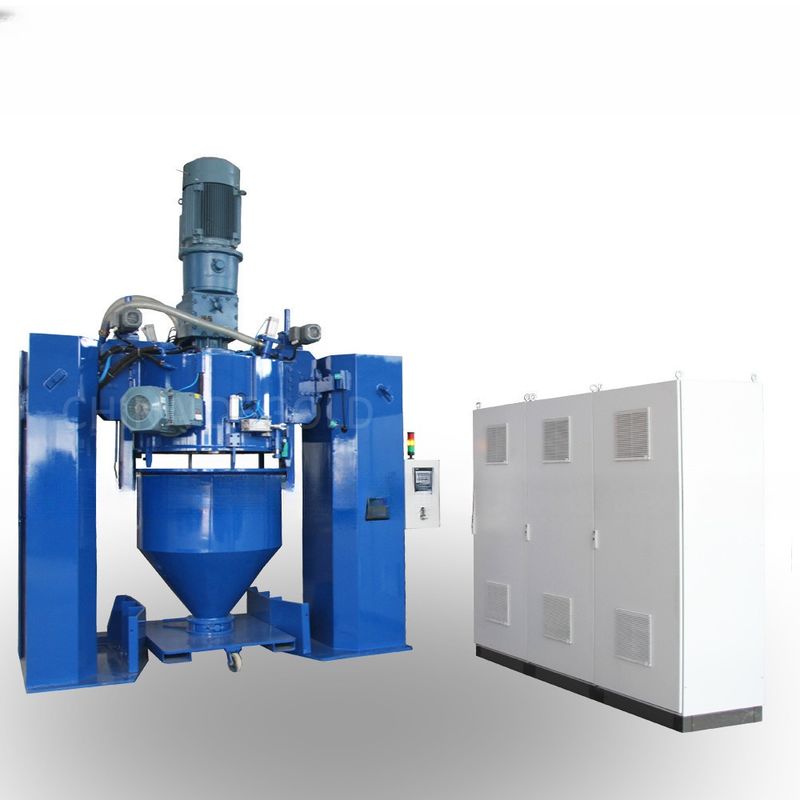

Separated control cabinet
The special cleaning position

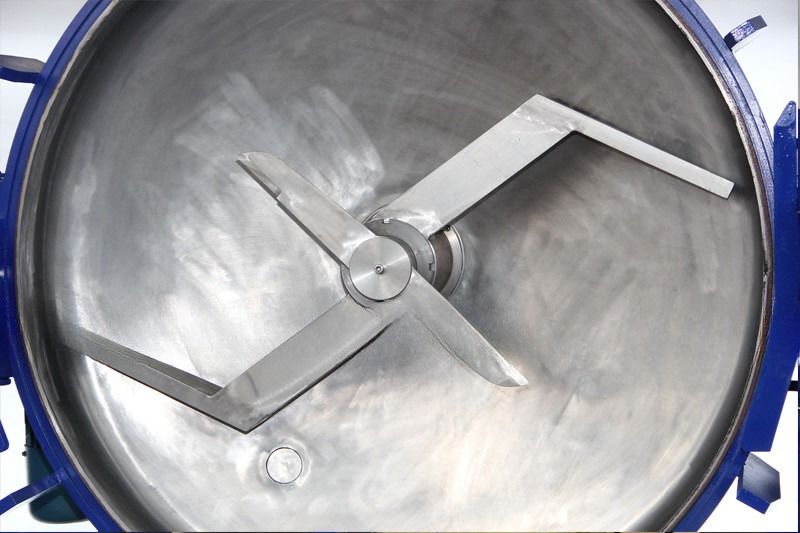

Geometric two mix blades
Many usage of container
PLC control
Ex motor

CM1000-CD (1000Litres)Technical Data
1) Total volume: 1000L,
2) Effective volume: 800L,
3) Mixing motor power: 55kW,
4) Dispersion motor power: 2-15kW,
5) Rotary motor power: 1.1kW,
6) Compressed air: 0.6MPa, 1/4" interport,
7) Working voltage: 380V/220V.

All Volumes Technical Data Sheet
