SGS 30HP High Speed Mixing Machine For Paints And Inks Customization

30hp high speed mixing machine

30hp high speed disperser

paints high speed disperser

Request A Quote

SGS 30HP High Speed Mixing Machine For Paints And Inks Customization

Product Details

Model NO.:

FS30YB

Dispersion Disc Material:

Ss304

Dispersion Shaft Rotary Speeds:

Inverter Controls

Ex Proof Type:

Ex Proof And Non Ex Proof

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8474390000

Supply Ability:

60 Set/Sets Per Month

Automatic Grade:

Automatic

Dispersion Shaft Lifting Type:

Hydraulic

Location:

Factory

Main Motor Power:

From 5.5kw To 75kw

Application:

Paints, Inks, Pigments, Pastes Etc.

Certification:

Customization:

Available | Customized Request

Highlight:

30hp high speed mixing machine

30hp high speed disperser

paints high speed disperser

Payment & Shipping Terms

Car Paint Disperser Mixer With Hydraulic Dispersing Shaft Lifting Way

Get Best Price

Offset Printing Ink Disperser Mixer High Speed Dissolver Explosion Proof

Get Best Price

SGS 30HP High Speed Mixing Machine For Paints And Inks Customization

Get Best Price

22kW High Speed Paint Mixer Pigment Premixing High Speed Dissolver

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

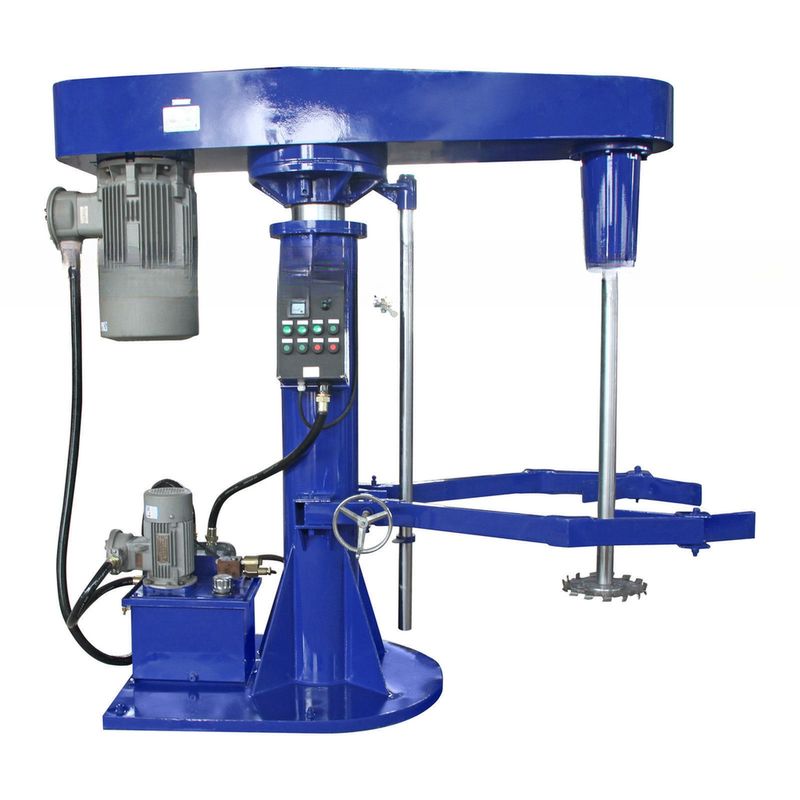

SGS Approved 30HP High Speed Mixing Machine for Customized Paints and Inks Customization
Product Description:
DEGOLD FS series high speed disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid. This series of agitators can be easily operated with hydraulic elevation and rotation frame.

DEGOLD FS series dispersers are adopting a compacted design which consists of lifting device, driving device, mixing device, hydraulic device etc.

The motor has the function of CV lifting; The shaft rotation speed can be changed according to customers' needs. The peripheral velocity will be 17m/s.

Principle of Operation:

The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

We produce the high speed dispersers with following kinds motor powers:

5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, 45kW, 55kW, 75kW.

Technical Data:

		FS5.5	FS7.5	FS11	FS15	FS18.5	FS22	FS30	FS37	FS45	FS55	FS75
Main motor power (kW)		5.5	7.5	11	15	18.5	22	30	37	45	55	75
Dispersion shaft rotary speeds (r/min)		0~1500						0~1200			0~1000
Dispersion shaft lifting height (mm)		1200						1400			1500
Estimated batch		350	400	450	500	700	1000	1500	2000	2500	3000	4000
Dispersion discs diameter (mm)		200	250	250	250	300	300	350	400	450	500	550
Dimension	L	1655				2150		2120			2500
	W	570				800		900			1000
	H	1880				1960		2200			2500
Net weight		1140	1155	1165	1830	1850	1885	2000	2055	2085	2310	2425

Production Line:

Our Services:

We will send out one or two technicians to buyer's location for providing installation and training service.

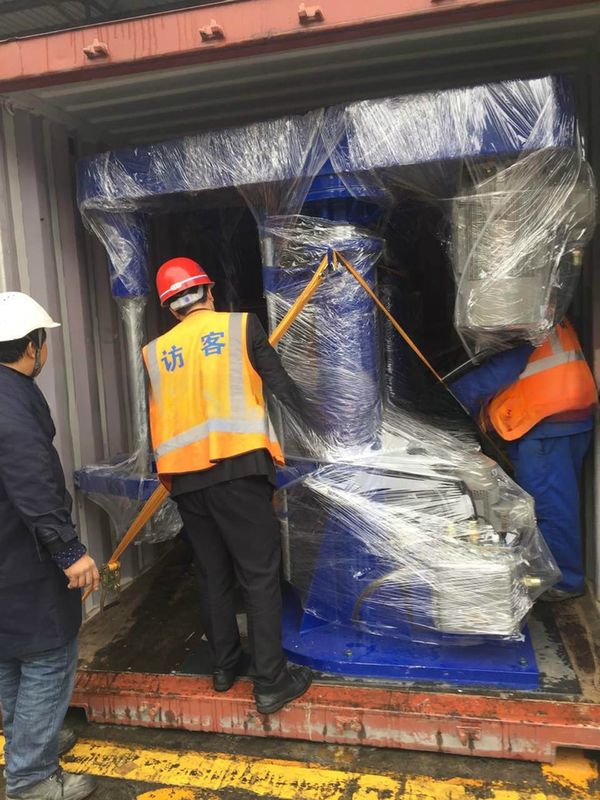

Packaging & Shipping:

Fumigation wooden box
30HP High Speed Mixing Machine for Paints and Inks

Exhibition:
30HP High Speed Mixing Machine for Paints and Inks
