500kg/H Powder Coating Grinding Mill

Vertical Grinding Mill System

Powder Coating Grinding Mill 22KW

Request A Quote

Product Details

Model NO.:

ACM-30

HS Code:

847439000

Supply Ability:

200sets/Year

Application:

Powder Coating Production

Productivity:

500kgs/Hr

Transport Package:

Fumigation Wooden Box

Specification:

SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

Customization:

Available | Customized Request

Highlight:

500kg/H Powder Coating Grinding Mill

Vertical Grinding Mill System

Powder Coating Grinding Mill 22KW

Payment & Shipping Terms

RELATED PRODUCTS

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

500kg/H Powder Coating Production Line Grinding Mill with SGS Certification ACM-30 Grinding Mill for 500kg/H Powder Coating Production Line (ACM-30)

ACM-30 grinding mill for making powder coatings

ACM-30 vertical grinding mill for 500kg/h production line

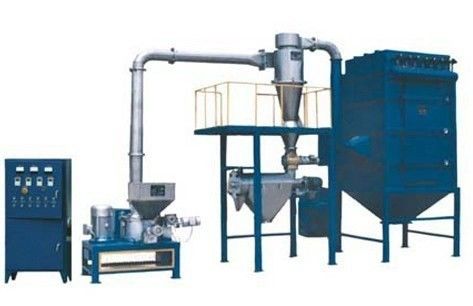

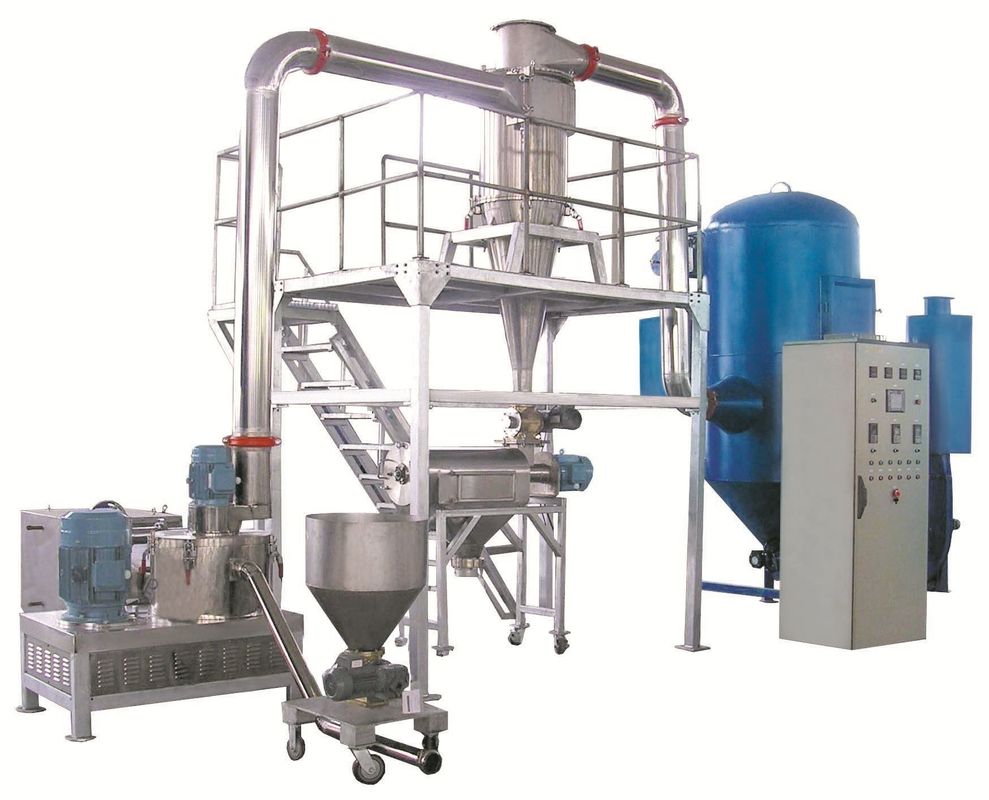

The machine consists of host crusher, cyclone separator, discharge machine, rotary screen, pulse dust collector, draught fan and muffler, with the powerful wallop and crushing effect caused by the high-speed revolving grinding pan, the materials are finely processed under the mutual impacts with the pillars and lining tiles.

TECHNOLOGY ADVANTAGES:
1. Even diameters of powder granule
2. Granularity adjustable
3. Temperature rise of the production low
4. Double separator
5. Easy maintenance
6. Safe and easy to use
7. Wind-cooling system (optional)
8. High recovery rate (≥ 98%)

Any questions and opinions are great appreciated here all way.

Type	Main grinding pan power(KW)	Main grinding pan speed(r/min)	Secondary grinding pan power(KW)	Product granularity	Output (kg/h)	Overall size(mm)	Remark
ACM-30	22	5500	3	180	400-550	798 0 × 1520 × 3660	Secondary grinding pan frequency changing stainless steel tube
