5L Pigment Mill Horizontal Nano Grinding Machine Zirconium Beads

Product Details

Model NO.:

ZM5SB3310-X

Specification:

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8474202000

Supply Ability:

100sets/Year

Mill Type:

Grinding Discs Type

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment, Agrochemical Etc.

Usage:

Production

Transport Package:

Fumigation Wooden Box

Customization:

Available | Customized Request

Highlight:

bead exporter zm5k conical mill

zm5k conical bead mill wholesalers China

conical bead mill wholesalers China zm5k

Payment & Shipping Terms

30L Nano Horizontal Bead Mill Impeller ZM30D/ZM30S/ZM30DB/ZM30SB Cooling Water Jacket

Get Best Price

Video

5L Horizontal Sand Mill for Paints and Inks ZM5 Series Wet Grinding Capability

Get Best Price

Video

Customized Request ZM20S1210 Horizontal Sand Mill for Paint Customization Pesticide

Get Best Price

Video

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

5L Horizontal Bead Mill for Pigment Production in the Applicable Industry ZM5 Series

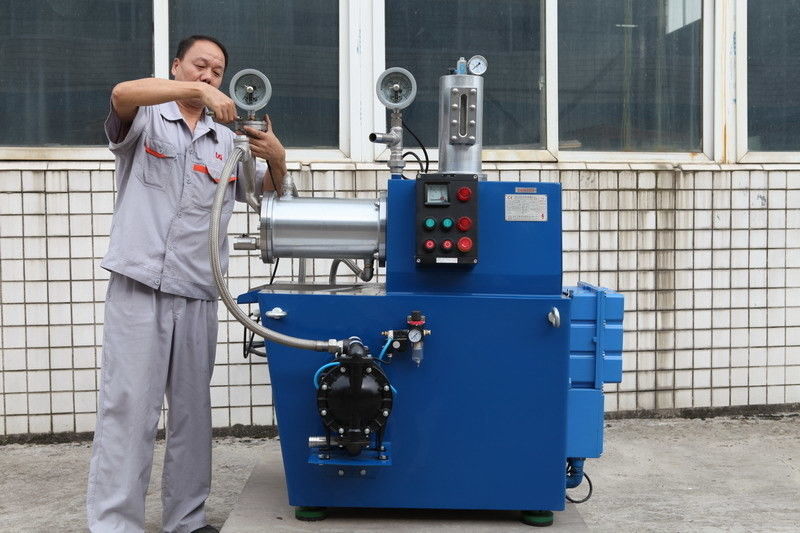

5L horizontal bead mill-Model (ZM5 Series)

5L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is only 5 liters, then they suitable for small batches.

Even 5L, there are different materials and constructions to meet with the different grinding requirements. For example,

"ZM5SB3310-X" specification.

1) 5L

2) Double mechanical seal

3) Ex proof

4) Mold steel for inner grinding chamber and grinding discs

5) Double diaphragm fluid transfer pump

6) Without AC drive

7) Dynamic gap separator

8) Chilling water jacket

Option:

1) Single mechanical seal, double mechanical seal.

2) Ex proof or Non Ex proof.

3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.

4) Double diaphragm fuild transfer pump, gear pump, screw pump.

5) AC drive or without AC drive.

6) Dynamic gap separator or static gap separator.

5L Horizontal Bead Mill for Paint, Ink, Pigment (ZM5 series)

Model Parameter	ZM5S	ZM5D	ZM5SB	ZM5DB
Effective cylinder volume (L)	5	5	5	5
Main motor power (KW)	7.5/11	7.5/11	7.5/11	7.5/11
Grinding medium load (L)	About 85% of the cylinder volume
Materials in/outlet pipe diameter	G3/4	G3/4	G3/4	G3/4
Cooling water in/outlet pipe diameter	G3/4	G3/4	G3/4	G3/4
Pump pressure	0.7MPa
Compressed air consumption(m 3 /min)	0.2
