Customizable 100L Mass Horizontal Sand Mill-Bead Mill-Pearl Mill with ZM100DB3310-E

Product Details

Model NO.:

ZM100DB3310-E

Applicable Industry:

Paint, Ink, Pigment, Agrochemical Etc.

Warranty:

12 Months

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Ex Proof Type:

Ex Proof And Non Ex Proof

Transport Package:

Fumigation Wooden Box

Specification:

100L

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

100sets/Year

Type:

Disc Grinder

Application:

Chemical

Object:

Milling Cutter

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Cooling Water Jacket:

Yes

Customization:

Available | Customized Request

Highlight:

supplier zm5k conical bead mill

zm5k supplier conical bead mill

bead supplier zm5k conical mill

Payment & Shipping Terms

30L Nano Horizontal Bead Mill Impeller ZM30D/ZM30S/ZM30DB/ZM30SB Cooling Water Jacket

Get Best Price

Video

5L Horizontal Sand Mill for Paints and Inks ZM5 Series Wet Grinding Capability

Get Best Price

Video

Customized Request ZM20S1210 Horizontal Sand Mill for Paint Customization Pesticide

Get Best Price

Video

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.

"Series ZM" horizontal bead mills:	grinding discs type bead mills
"Series ZM-X" horizontal bead mills:
"Series ZM-E" horizontal bead mills:
"Series ZM-K" horizontal bead mills:	pin type bead mills
"Series ZM-T" horizontal bead mills:	turbo type bead mills

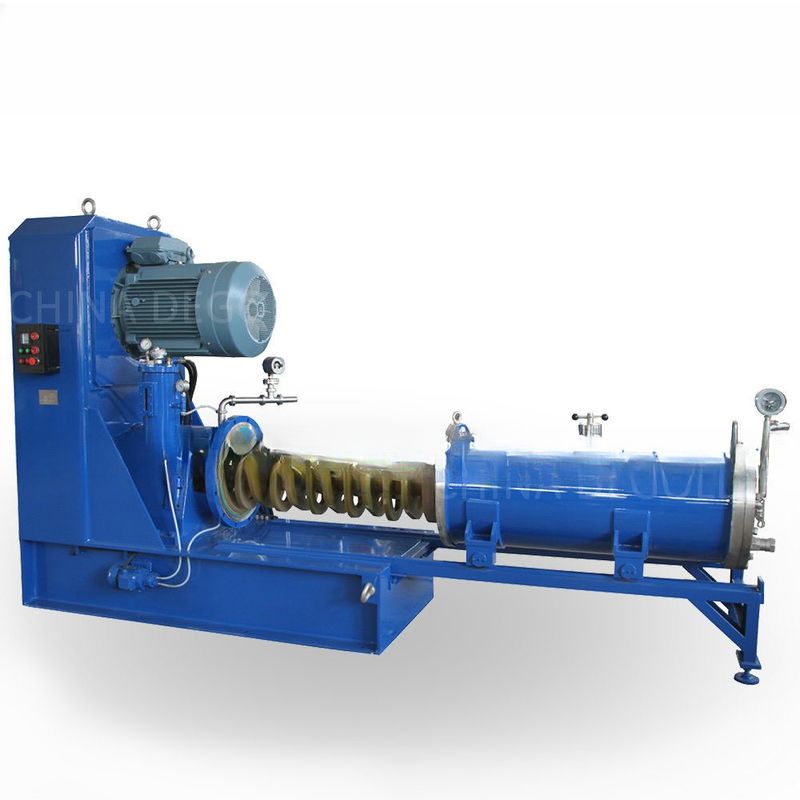

"ZM100DB3310-E" is the 100 liters horizontal discs type bead mill.

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations.
Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.

Applications:
100L Mass Paint Horizontal Sand Mill-Bead Mill-Pearl Mill

ZM100DB3310-E Horizontal Bead Mill Specification:

1) 100L

2) Single mechanical seal

3) Ex proof

4) Mold steel for inner grinding chamber and grinding discs

5) Double diaphragm fluid transfer pump

6) Without AC drive

7) Gap separator

8) Chilling water jacket

ZM100DB3310-E Horizontal Bead Mill Option:

1) Single mechanical seal, double mechanical seal.

2) Ex proof or Non Ex proof.

3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.

4) Double diaphragm fuild transfer pump, gear pump, screw pump.

5) AC drive or without AC drive.

6) Dynamic gap separator or static gap separator.

100L Mass Paint Horizontal Sand Mill-Bead Mill-Pearl Mill

ZM100DB3310-E Horizontal Bead Mill Technical Data:

Type	ZM20-E	ZM50-E	ZM100-E	ZM200-E	ZM300-E	ZM500-E	ZM1000-E
Grinding chamber volume (l)	20	50	100	200	300	500	1000
Batch size (l)	100-500	200-1000	500-2500	1000-10000	>2000
Drive (kW)	18.5/22	37/45	55/75	75/90	90/110	160/200	315
Grinding shaft rotary speed (r/min)	1200	800	650	500	460	350	340
Length (mm)	1670	1970	2750	2950	3450	3350	6650
Width (mm)	1050	1150	1200	1200	1300	1500	1450
Height (mm)	1565	2000	2200	2200	2250	2700	2850
Net weight (kg)	750	1500	3500	3700	4700	8000	12000

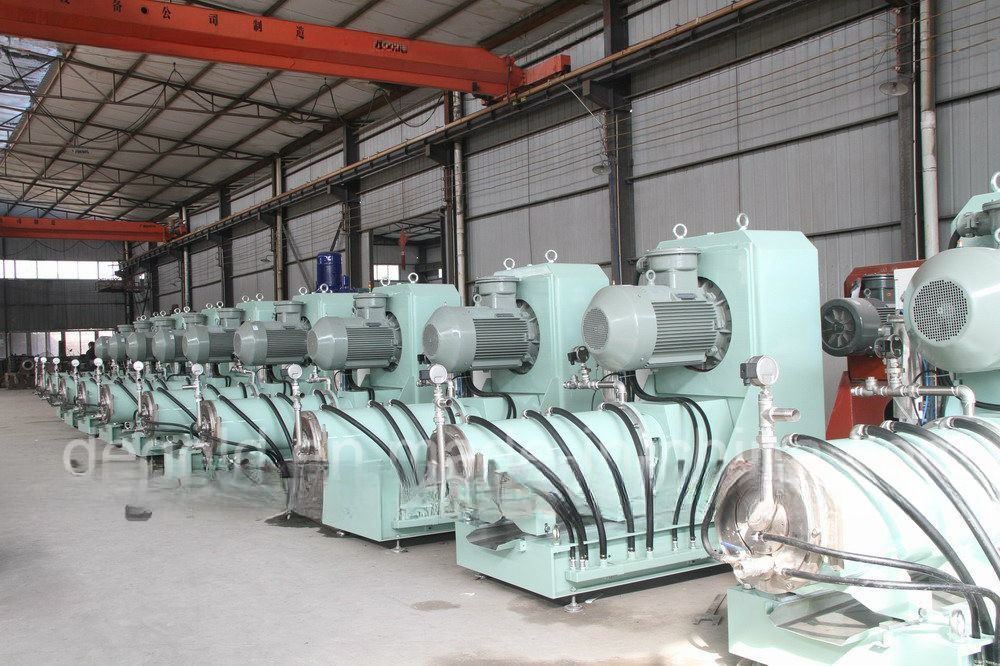

Production Line:

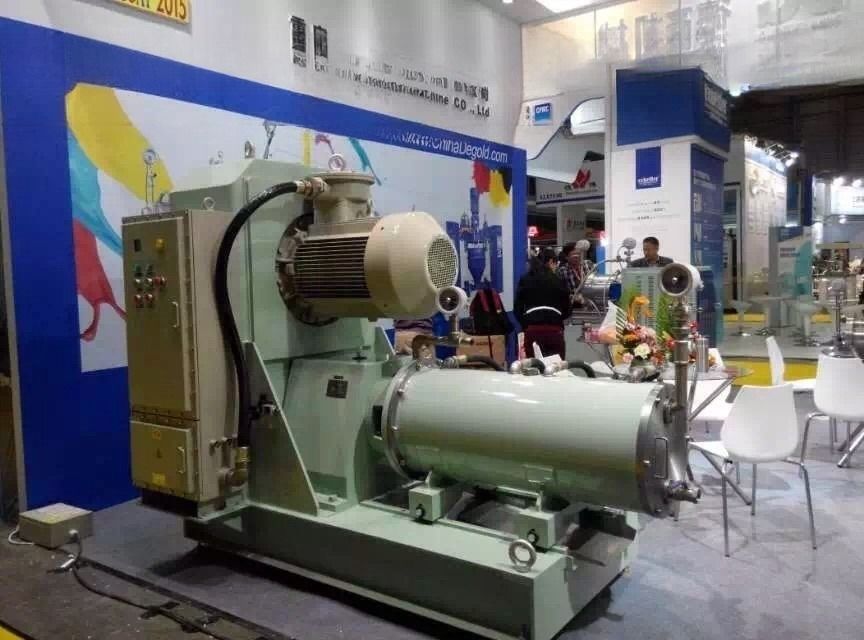

Exhibition:

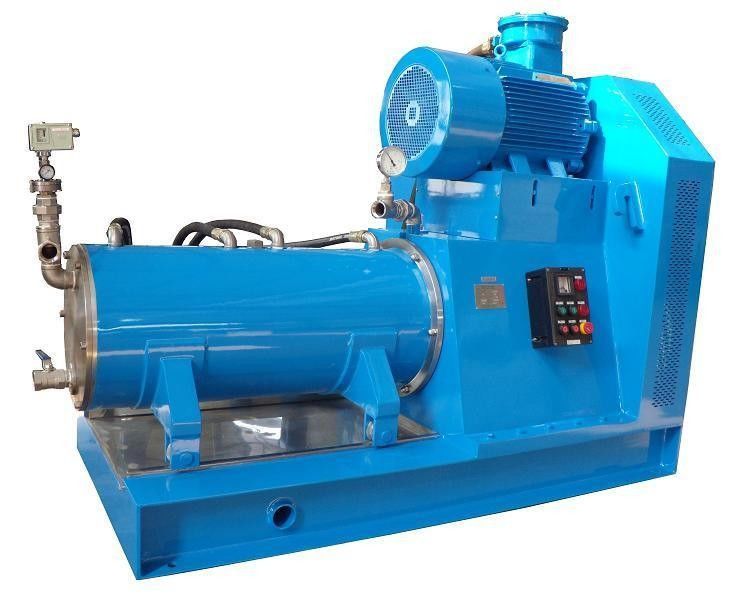

ZM100DB3310-E Horizontal Bead Mill

100L Mass Paint Horizontal Sand Mill-Bead Mill-Pearl Mill
