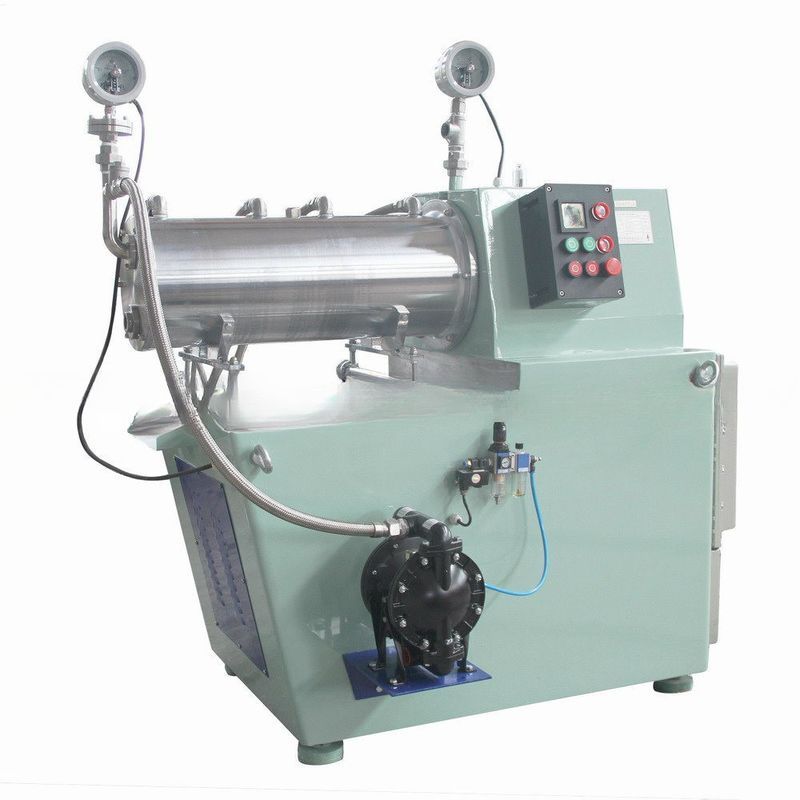

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

conical bead mill wholesalers zm5k

bead mill wholesalers zm5k conical

wholesalers zm5k conical bead mill

Contact Us
Request A Quote
Product Details
Model NO.:
ZM15
Seal Type:
Mechanical Seal
Pump Type:
Diaphragm Pump
Mill Speed Adjustment Way:
With Inverter
Mill Type:
Horizontal
Transport Package:
Fumigated Wooden Box
Specification:
CE, SGS, ISO9000
Trademark:
DEGOLD
Origin:
Chongqing, China
HS Code:
8479820090
Supply Ability:
500sets/Year
Grinding Chamber Volume:
15L
After-Sales Service Provided:
Engineers Available To Service Machinery Overseas
Ex Proof Type:
Ex Proof And Non Ex Proof
Application:
Chemical
Inner Grinding Cylinder Material:
Mold Steel
Grinding Disc Material:
Mold Steel
Customization:
Available | Customized Request
Highlight:

conical bead mill wholesalers zm5k

,

bead mill wholesalers zm5k conical

,

wholesalers zm5k conical bead mill

Payment & Shipping Terms
Product Description
Applications
Paint
  • Automotive Paint
  • Top Coat
  • Clear Coat
  • Cathodic Dip Coating
  • Coil Coating
  • Fillers
  • Construction Paint
  • Wood Paint
  • Marine Paint
  • Dispersion Paint
  • Road Marking Paint
Printing Inks
  • Screen Printing Inks
  • Flexo Printing Inks
  • Rotogravure Inks
  • Sheet-fed
  • Ink jet
  • Heat-set
  • Cold-set
Agrochemistry
  • Fertilizer
  • Pesticides
  • Suspension Concentrate(SC)
Pigments / Dyes
  • Pigment Production
  • Titanium Dioxide
Ceramics / Glass
  • Ceramic Pigments
  • Table Ware / Sanitary Ware
  • Technical Ceramics
Ores / Minerals / Metals
  • Graphite
  • Talc
  • Calcium Carbonate
Life Science
  • Biotechnology
  • Cosmetics / Personal Hygiene
  • Pharmaceuticals
Food
  • Cocoa Liquor
More applications, please contact with us.


Horizontal Bead Mill Machine Price

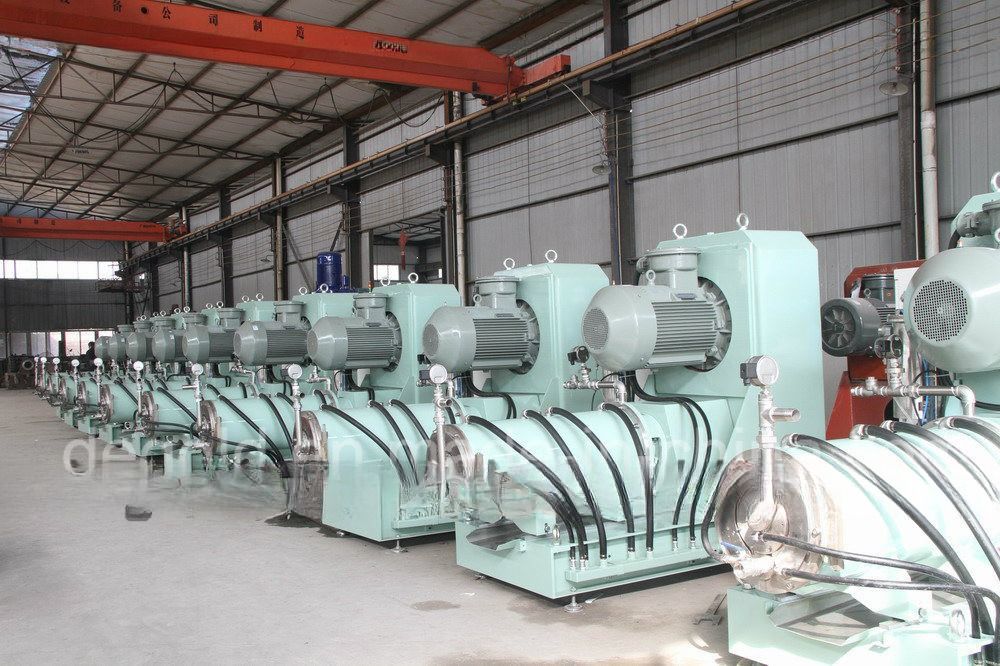

Production Line:
Horizontal Bead Mill Machine Price

ZM series Introduction

Following is the technical table of ZM series bead mills produced by Chongqing Degold Machine Co., Ltd.

ZM Series ZM0.3 ZM1.4 ZM5 ZM15 ZM20 ZM30 ZM50
Effective grinding chamber volume (L) 0.3 1.4 5 15 20 30 50
Main motor power (kW) 0.75 2.2 7.5 15 18.5 22 30
Grinding shaft rotary speed (r/min) 0~1500 0~2800 1650 1200 1200 1120 900
Adjustable range of materials flow (L/min)   0~1 0~2 0~2 0~10 0~10 0~60
Max. cooling water consumption (t/h)   0.5 1 1 2 2 2.5
Estimated productivity (kg/h)   2~20 12~120 30~300 40~400 50~600 100~1000
Length 640 650 1250 1560 1600 1860 2100
Width 410 570 900 1050 1050 1100 1150
Height 485 885 1250 1550 1550 1550 1650
Net weight (kg) 50 500 700 800 980 1100 1300
Ex proof Type Ex proof / Non Ex proof
Seal Type Single Mechanical Seal / Double Mechanical Seal
Inner Grinding Cylinder Material SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Grinding Disc Material SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Pump Type Diaphragm pump / Gear Pump / Screw pump
Mill Speed Adjustment Way With inverter / Without inverter
Note: Technical data are different if there are some customized constructions.
We'd like to send you the suitable model bead mills for your production, please feel free to contact with us.

Series Of Horizontal Bead Mill

Following is the introduction of horizontal bead mills produced by Chongqing Degold Machine Co., Ltd.

Series Description Browse
ZM LAB laboratory bead mills are used for research and development.

volume:   0.3L |  1.4L

Browse Products
ZM ZM series bead mills are suitable for middle viscosity water based and solvent based poducts wet grinding and dispersion.

volume:   5L |  15L |  20L |  30L |  50L

Browse Products
ZM-X ZM-X series bead mills are suitable for nano meterswet grinding and dispersion.

volume:   5L |  15L |  20L |  30L |  50L |  100L |  200L

Browse Products
ZM-E ZM-E series bead mills are rotor gap separator bead mills for nano wet grinding.

volume: 20L |  50L |  100L |  200L |  300L |  500L |  1000L

Browse Products
ZM-K ZM-K series are conical pin typebead mills. This series bead mills are suitable for high viscosity materials wet grinding and dispersion.

volume:   6L |  10L |  25L |  60L |  150L

Browse Products
ZM-T ZMT series are turbo designbead mills which are suitable for nano meters wet grinding and large productivity.

volume:   8L |  18L |  25L |  60L

Browse Products
Any question, please contact with us.

Company Introduction

Chongqing Degold Machine Co., Ltd.

Horizontal Bead Mill Machine Price

Degold is chemical equipment & machinery (wet grinding bead/sand/pearl mill machine) manufacturer in China

Degold designs, develops, constructs, and installs production lines and advises, trains customers.

    Chongqing Degold Machine Co., Ltd. has always endeavored to develop grinding and mixing technique in chemical industry.
    Now we have developed various models Horizontal Bead Mills and Dispersers to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.

Certification

All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001:2008 Quality System and CE standards.
Horizontal Bead Mill Machine Price

Customers

Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as Akzo Nobel, 3M, Clariant, and Sherwin-Williams Co., Ltd. etc.
Horizontal Bead Mill Machine Price

Markets

From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Australia, Argentina, Belgium, Brazil, Colombia, Chile, Indonesia, India, Iran, Malaysia , New Zealand, Peru, Paraguay, Pakistan, Poland, Singapore, South Africa, Spain, Tunisia, Thailand, Uruguay , Vietnam etc.
Horizontal Bead Mill Machine Price
