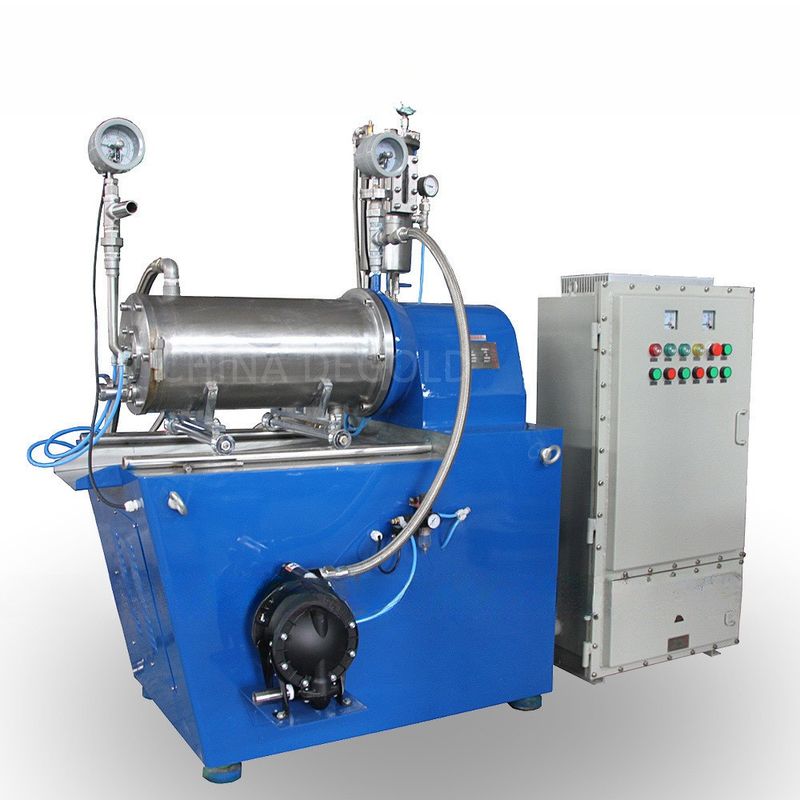

20L Ink Nano Grinding Horizontal Bead Mill with CE Certification and Disc Grinder

Product Details

Model NO.:

ZM20SB5511-E

Suitable Grinding Medium:

Ceramic Beads

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Separator:

Sieve Separator

Seal Type:

Mechanical Seal

Transport Package:

Fumigated Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

10 Sets Per Month

Application:

Chemical

Grinding Chamber Volume:

20 L

Inside Parts Material:

Ceramic

Type:

Disc Grinder

Function:

Wet Grinding For Particle Size Reduce

Cooling Water Jacket:

Yes

Customization:

Available | Customized Request

Highlight:

bead distributor zm5k conical mill

zm5k conical bead mill companies China

conical bead mill companies China zm5k

Payment & Shipping Terms

30L Nano Horizontal Bead Mill Impeller ZM30D/ZM30S/ZM30DB/ZM30SB Cooling Water Jacket

Get Best Price

Video

5L Horizontal Sand Mill for Paints and Inks ZM5 Series Wet Grinding Capability

Get Best Price

Video

Customized Request ZM20S1210 Horizontal Sand Mill for Paint Customization Pesticide

Get Best Price

Video

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

Product Description:

Min. grinding medium size:	0.1-0.2mm zirconia beads
Seal type:	Double mechanical seal
Ex proof type:	Ex proof

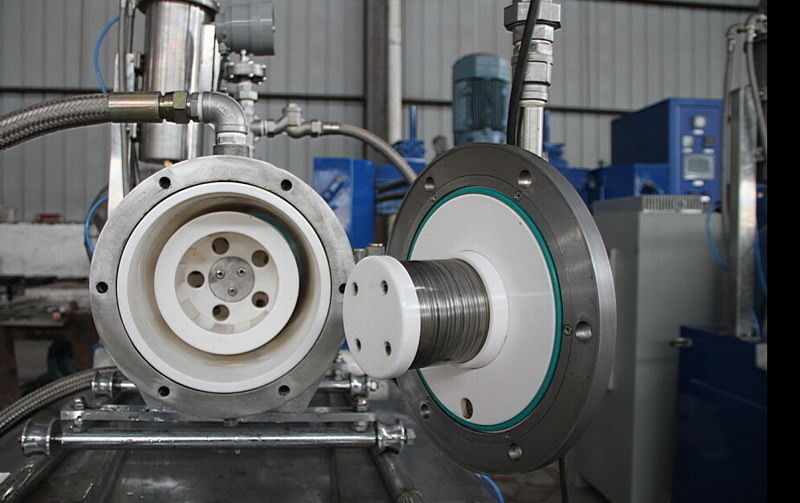

Grinding discs, inner griniding chamber, spacers material:	CERAMIC
Transfer pump type:	Double-diaphragm fluid transfer pump
Grinding shaft rotary speeds:	Inveter controlling
Grinding chamber volume:	20 Liters
Main motor power:	22kW

Application:

Ceramic Industry	Ceramic inks, Ceramic pigments
Printing Inks	Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes	Pigment, Titanium dioxide
Paint and Coating	Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals	Calcium carbonate, Pharmaceuticals, Cosmetics

Technical Data:

ZM20SB5511-E
Effective grinding chamber volume (L)	20
Main motor power (kW)	22
Grinding medium load (L)	About 85% of the grinding chamber volume
Grinding shaft rotary speed (r/min)	0-1200
Adjustable range of materials flow (L/min)	0-10
Max. cooling water consumption (t/h)	2
