Chemical Sand Mill Machine Lab Sand Mill In Paint Industry

Lab Sand Mill In Paint Industry

Chemical Sand Mill Machine

Lab Sand Mill In Paint

Request A Quote

Product Details

Model NO.:

ZM1.4D3321

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Warranty:

12 Months

Transport Package:

Fumigation Wooden Box

Specification:

CE, SGS, ISO9000

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8479820090

Supply Ability:

100sets/Year

Application:

Chemical

Type:

Disc Grinder

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment, Agrochemical Etc.

Usage:

For Lab Testing&Small Batches

Customization:

Available | Customized Request

Highlight:

Lab Sand Mill In Paint Industry

Chemical Sand Mill Machine

Lab Sand Mill In Paint

Payment & Shipping Terms

Chemical Sand Mill Machine Lab Sand Mill In Paint Industry

Get Best Price

Lab Horizontal Bead Mill Grinding Mill Machine For Chemical Processing

Get Best Price

Pin Type Lab Bead Mill Used For Wet Grinding Laboratory Bead Mill

Get Best Price

Customized Lab Bead Mill Wet Grinding Bead Milling Machine

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

Applicable Industry Paint Bead Mill/Sand Mill ZM1.4 Series for Lab Testing Small Batches

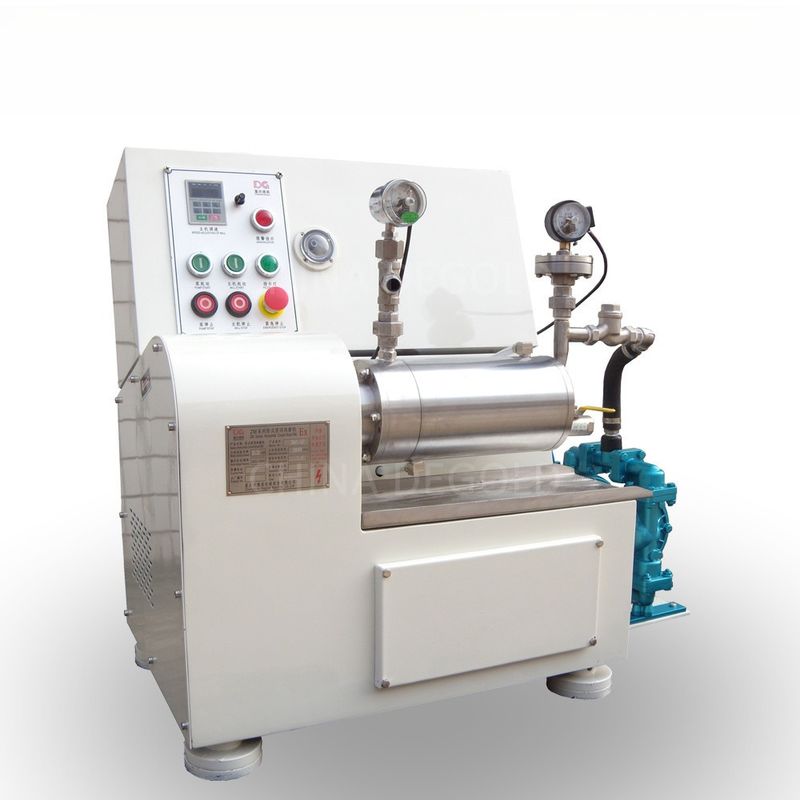

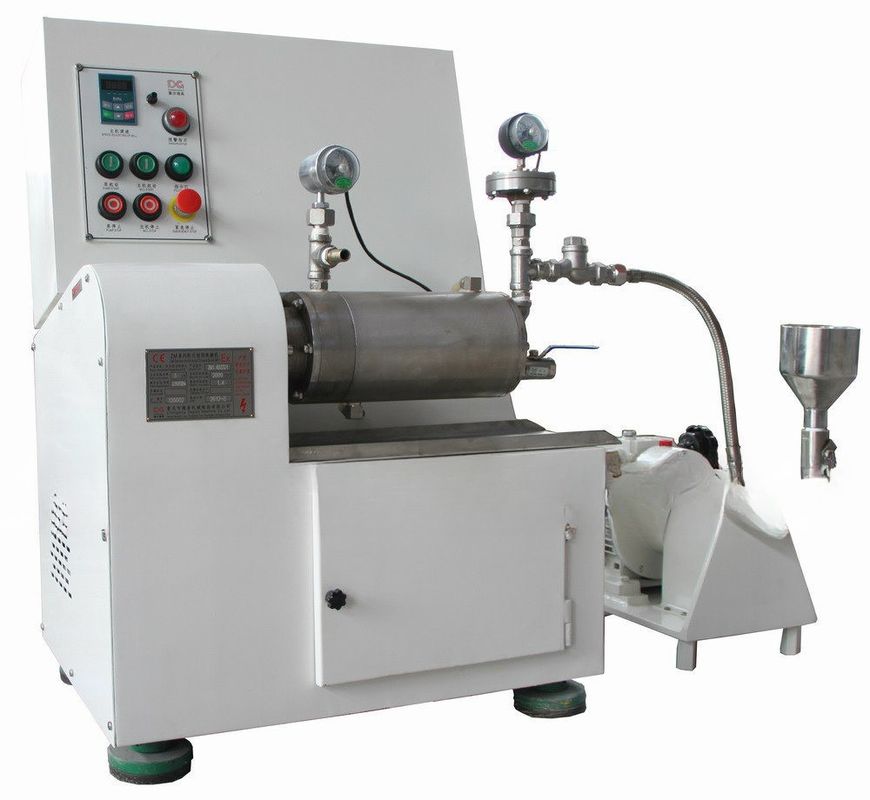

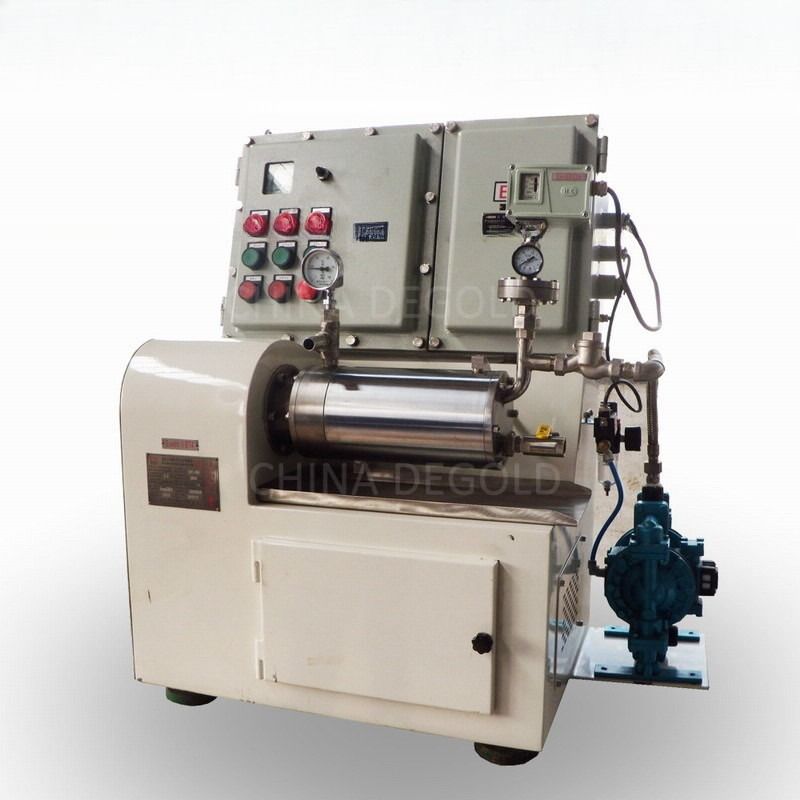

Lab horizontal bead mill- Model (ZM1.4 Series)

Chemical Sand Mill Machine Lab Sand Mill In Paint Industry 0

Introduction:

ZM1.4 Series lab horizontal bead mills are the wet grinding discs type bead mills for R&D and samples production.

The grinding chamber volume is 1.4L.

Specification:

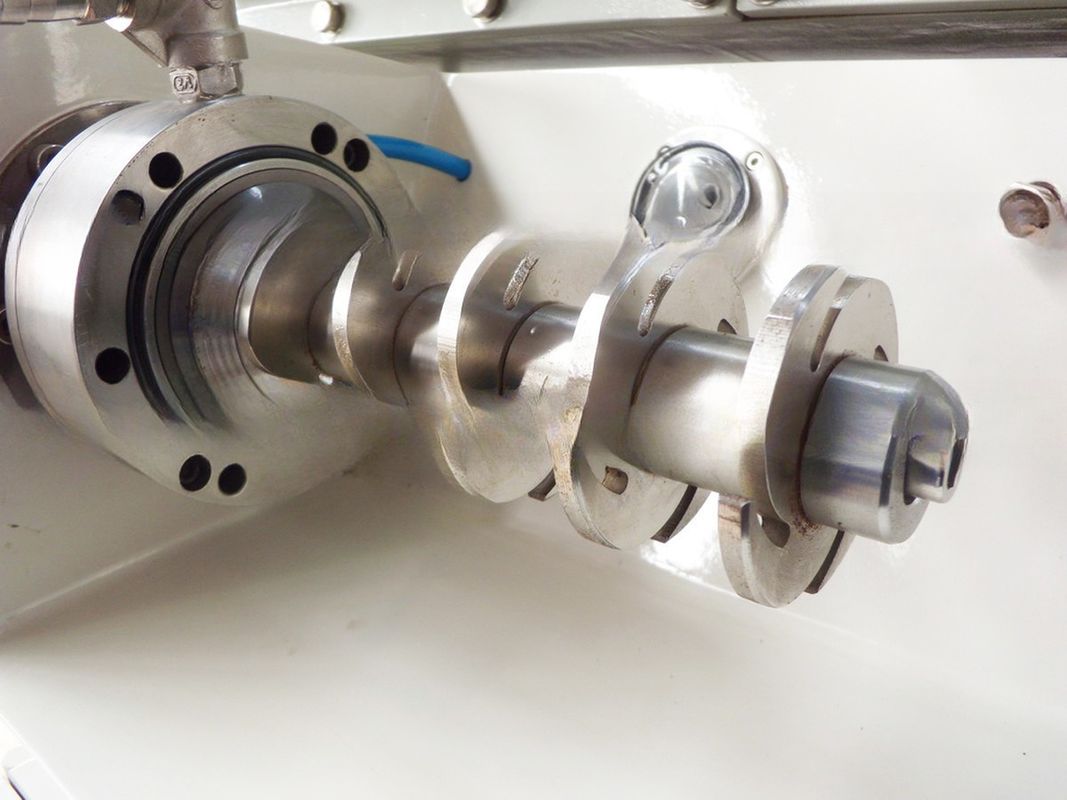

1) Mechanical seal, dynamic gap separator.

2) Small sizes grinding mediums can be used to make sure the precise lab analyze data.

3) It's easy to disassemble the grinding chamber for cleaning and formulations changes.

4) Continuous grinding, espcially suitable for various small batches/samples production.

5) AC drive controlling.

Option:

1) Different materials for inner grinding chamber and grinding discs selection includes the zirconia.

2) Different transfer pumps selection.

3) Ex proof or Non Ex proof selection for solvent based formulations and water based formulations.

Technical Data:

	ZM1.4D3321
Effective cylinder volume (liters)	1.4
Main motor power (kW)	2.2
Grinding shaft rotary speed (r/min)	0~2800
Adjustable range of mateirals flow(L/min)	0~1
Max. cooling water consumption (t/hr)	0.5
Pump pressure	0.7Mpa
Compressed air consumption (m 3 /min)	0.2
Dimension (L×W×H) mm	650×570×885
Net weight (kg)	500
