Conical Pin Type Wet Grinding Mill Nano Horizontal Sand Mill

wet grinding mill nano

nano horizontal sand mill

pin type wet grinding mill

Request A Quote

Product Details

Model NO.:

ZM5K, ZM5KB

Fineness:

Nano, Mircon

Separator:

Gap Separator

Seal Type:

Mechanical Seal

Ex Proof Type:

Ex Proof And Non Ex Proof

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001: 2008, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8474202000

Supply Ability:

20 Sets Per Month

Grinding Chamber Volume:

5 L

Bead Mill Type:

Pin Type

Application:

Paints, Inks, Pigments, Coatings

Function:

Wet Grinding For Particle Size Reduce

Cooling Water Jacket:

Yes

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Customization:

Available | Customized Request

Highlight:

wet grinding mill nano

nano horizontal sand mill

pin type wet grinding mill

Payment & Shipping Terms

Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

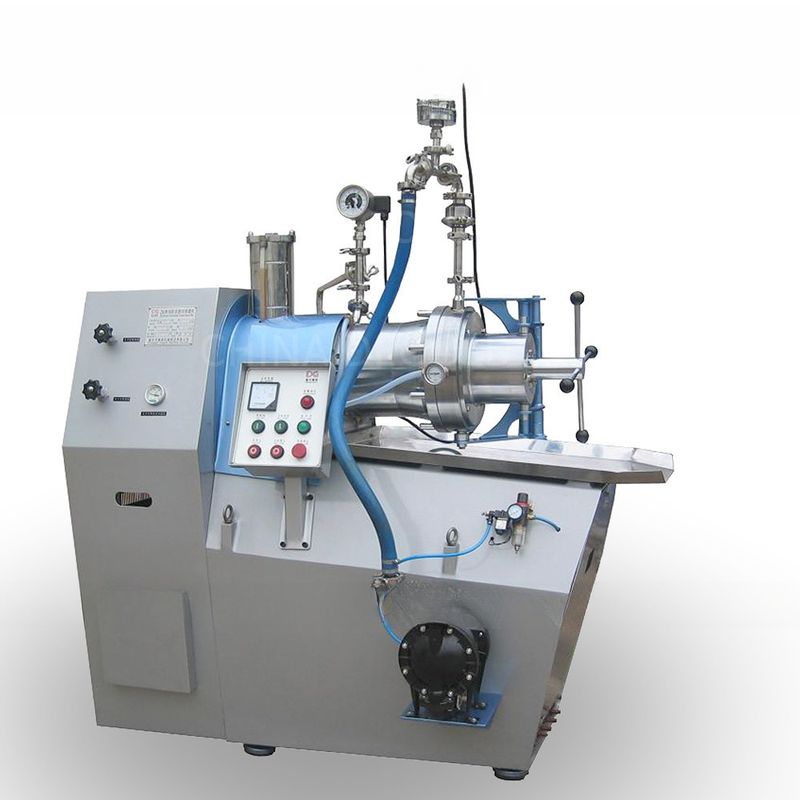

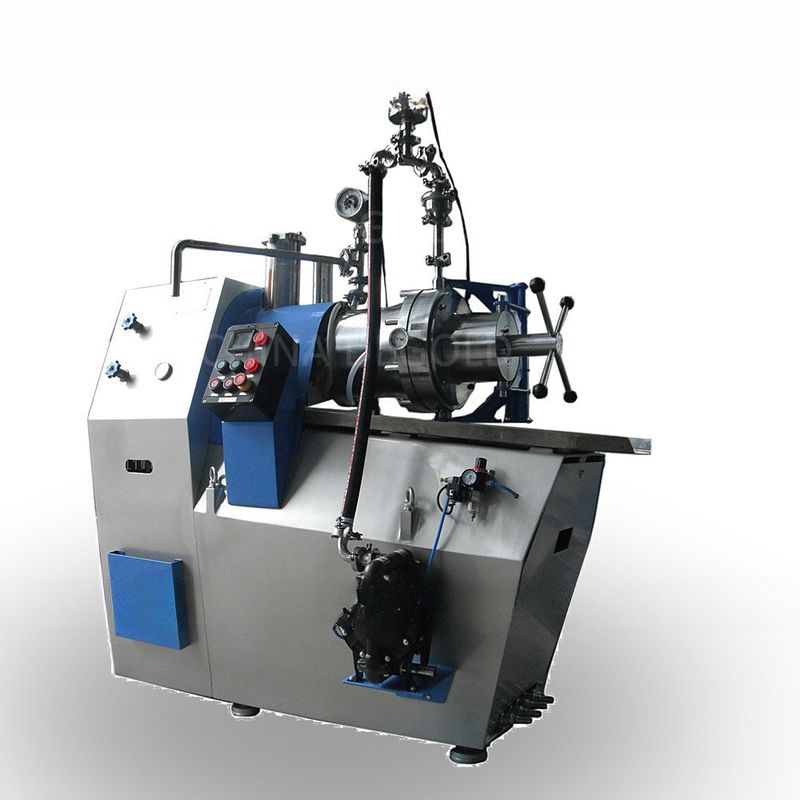

CE Certified Conical Pin Type Wet Grinding Bead Mill for Ink Particle Size Reduction

Product Description:

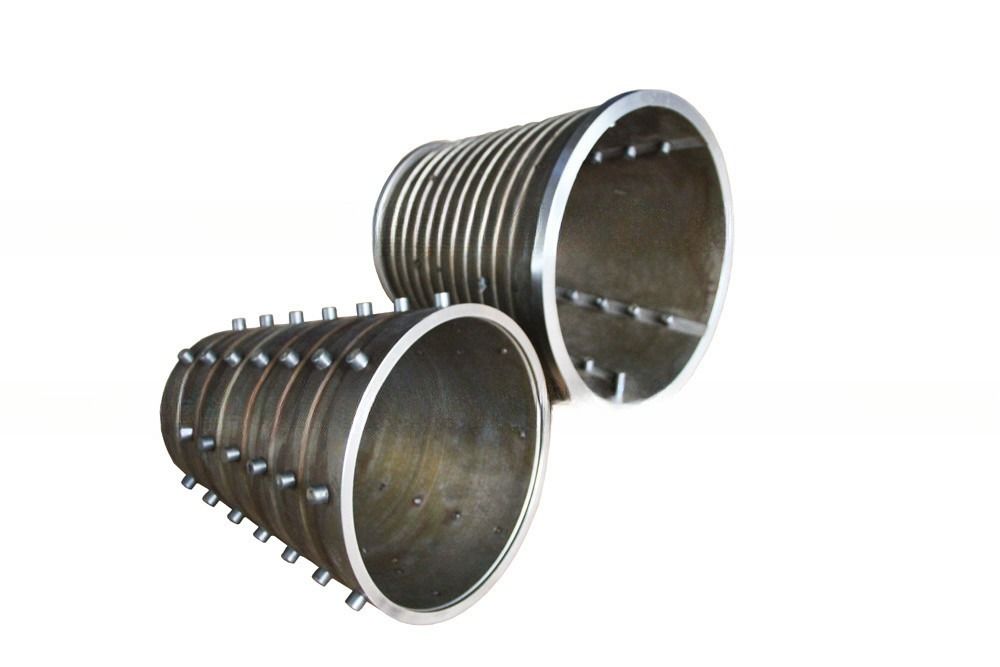

1. Grinding chamber is conical design,

2. Suitable for high viscosity formulations,

3. Grinding pins,

4. Rotor and stator cooling,

5. Nano grinding,

6. Large productivity.
Conical Pin Type Wet Grinding Mill Nano Horizontal Sand Mill 0

Technical Data:

Main technical parameters:
Project/Model	Unit	ZM5K and ZM5KB
Effective grinding cavity volume	L	5
Driving motor power	KW	22,30
Cooling water consumption ( 0.3Mpa)	m 3 /h	1.8
Controlling air pressure	Mpa	0.6-1
Dia. of grinding medium	mm	0.4-2.5
Gross weight	kg	1000
Overall size(L×W×H)	mm	1700×1300×1700

Difference between ZM5K and ZM5KB	ZM5K	ZM5KB
Difference between ZM5K and ZM5KB	Non Ex proof type, suitable for water based formulations.	Ex proof type, suitable for water based formulations.

Our Services:

We will send out one or two technicians to buyer's location for providing installation and training service.

Exhibition:
Conical Pin Type Wet Grinding Mill Nano Horizontal Sand Mill 1
