Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill

chemical pin type bead mill

pin type bead mill disc

conical horizontal bead mill

Request A Quote

Product Details

Model NO.:

ZM5KB

Object:

Milling Cutter

Application:

Chemical

Transport Package:

Fumigated Wooden Box

Specification:

CE, ISO, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China.

HS Code:

8474202000

Supply Ability:

80sets/Year

Mill Type:

Pin Type Inside Grinding Chamber

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment Etc.

Usage:

High Viscosity

Type:

Disc Grinder

Customization:

Available | Customized Request

Highlight:

chemical pin type bead mill

pin type bead mill disc

conical horizontal bead mill

Payment & Shipping Terms

Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

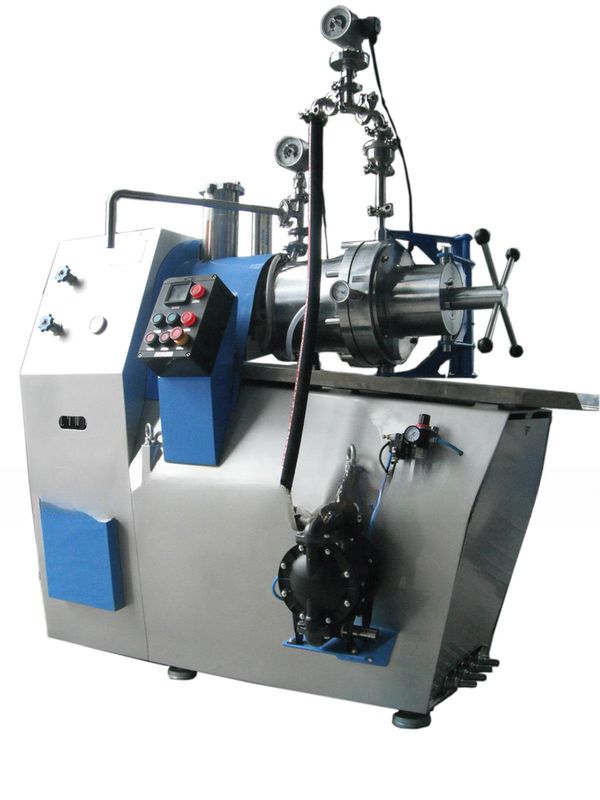

Pin Type Inside Grinding Chamber Disc Grinder Conical Horizontal Bead Mill-Ex ZM5KB Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill 0

ZM5KB conical pin type bead mill(Explosion-proof) is totally explosion-proof type, which is suitable for solvent based formulations.

ZM5KB conical pin type bead mill( (Explosion-proof)is suitable for superfine grinding and dispersion of medium and high-viscosity products.

APPLICABILITY:
1. Offset ink
2. Screen printing ink
3. Concentration ink
4. Printing oil for cigarette packet
5. Top grade
6. Distcemp

TRAITS:
1. High precision space separating unit capable of self cleaning. Suitable for φ 0.4mm or bigger grinding medium. Separating space can be adjusted by selecting different rotor separating ring.
2. Conical grinding cavity, slit mixer, small working zone considerably lower down cross pollution.
3. Forced cooling of rotor, stator and separating ring.
4. High precision bearing and double-mechanical seal.
5. Mechanically-powered pressure unit to adjust effective bead load and product quality.
6. High abrasion-resistance materials for grinding cavity.
7. Compeletely explosion proof type.
Universal Horizontal Large-Volume Conical Slit Bead Mill is widely used in the dispersion and superfine grinding of medium and high-viscosity products for 50kg/h or bigger batch production.

Standard Deploy:
1. Rotor and stator forced cooling
2. Separation ring cooling
3. Precision bearing and double-mechanical seal
4. High precision space separation
5. Product pressure/temperature control
6. Revolve-open pressure unit
7. Speed-adjustable feed pump
8. Explosion-proof design

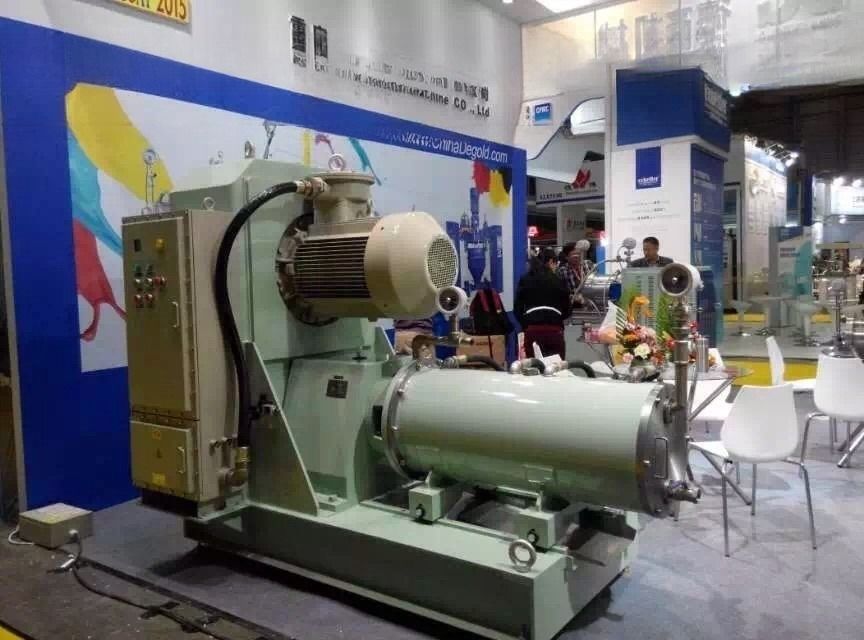

Chemical Pin Type Bead Mill Disc Grinder Conical Horizontal Bead Mill 1

Any questions and comments are great appreciated here all way.

Main technical parameters:
Project/Model	Unit	ZM5KB
Effective grinding cavity volume	L	5
Driving motor power	KW	22,30
Cooling water consumption ( 0.3Mpa)	m 3 /h	1.8
Controlling air pressure	Mpa	0.6-1
Dia. of grinding medium	mm	0.4-2.5
Gross weight	kg	1000
Overall size(L×W×H)	mm	1700×1300×1700
