Customized Request Object Small Scale Horizontal Bead Mill for Solvent Paint Production

Product Details

Model NO.:

ZM15DB2210

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Transport Package:

Fumigation Wooden Box

Specification:

CE, ISO9001, SGS

Trademark:

DEGOLD

Origin:

Chongqing, China

HS Code:

8474202000

Supply Ability:

250sets/year

Type:

Disc Grinder

Suitable Grinding Medium:

Zirconium/Zirconia/Zircon Beads

Function:

Wet Grinding For Particle Size Reduce

Applicable Industry:

Paint, Ink, Pigment Etc.

Object:

Milling Cutter

Application:

Chemical

Customization:

Available | Customized Request

Highlight:

conical bead mill pin type zm5k

bead mill pin type zm5k conical

pin type bead mill zm5k conical

Payment & Shipping Terms

30L Nano Horizontal Bead Mill Impeller ZM30D/ZM30S/ZM30DB/ZM30SB Cooling Water Jacket

Get Best Price

Video

5L Horizontal Sand Mill for Paints and Inks ZM5 Series Wet Grinding Capability

Get Best Price

Video

Customized Request ZM20S1210 Horizontal Sand Mill for Paint Customization Pesticide

Get Best Price

Video

ZM15 Horizontal Bead Mill Machine with Inverter Speed Adjustment at Affordable

Get Best Price

+86 18716271716

jiang@chinadegold.com

86-187-1627-1716

Contact Now

Product Description

DEGOLD ZM series horizontal bead mill is a kind of wet-grinding machine to dispersing low, medium and high viscosity materials. The special designed dispersion discs, appropriate grinding bead, and the functional mechanical seals ensure the effective of the DEGOLD ZM series horizontal bead mill. Customers can choose the diameter of the bead, the material of the dispersing shaft, dispersing discs to improve the quality of your products. We have many models, and the effective volume from 0.3L to 250L. In a word, we will choose the best one for you according to your producing formulation.

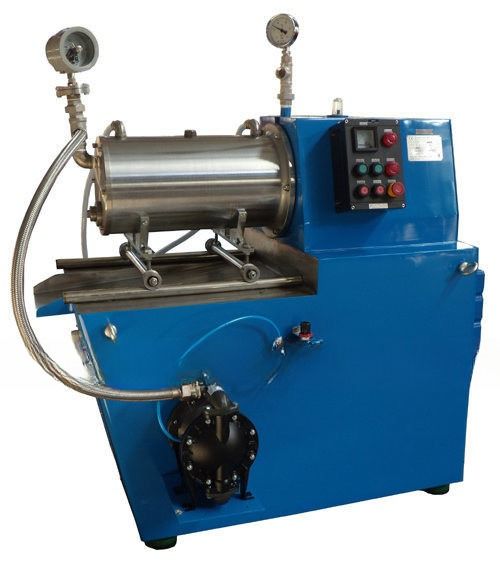

Small Scale Horizontal Bead Mill for Solvent Paint

ZM15DB2210 horizontal bead mill

1) 15 Liters,
2) Suitable for zirconia grinding beads,
3) Mechanical seal,
4) Ex proof
5) Hard alloy griniding chamber and grinding discs,
6) Double-diaphragm fluid transfer pump,
7) Without AC drive to control grinding shaft rotary speeds.

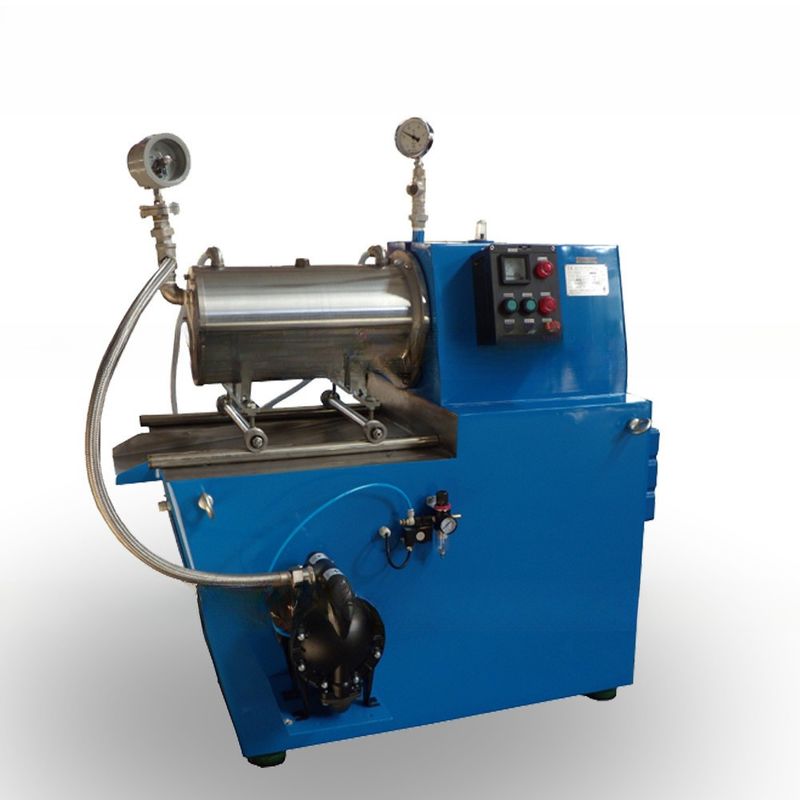

Small Scale Horizontal Bead Mill for Solvent Paint

There are the others construction ways and materials for 15 liters, please contact with us to get suitable model for your productions. Thanks.

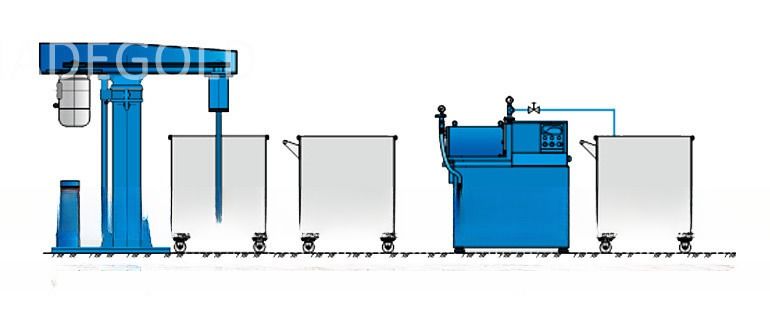

Production Line:
Small Scale Horizontal Bead Mill for Solvent Paint

Technical Data Sheet:

	ZM15DB2210
Effective grinding chamber volume (L)	15
Main motor power (kW)	15
Grinding medium load (L)	About 85% of the grinding chamber volume
Materials inlet/outlet pipes diameter	G1
Cooling water inlet/outlet pipes diameter	G3/4
Pump pressure (MPa)	0.7MPa
Compressed air consumption (m3/min)	0.3
Dimension (LWH)mm	1560×1050×1550
Net weight (kg)	800
